Identify Thermostat Housing Sensors


Recommended Posts

Now then my darlings..

Got a big box full of various sensors from 4E-FTE and 4E-FE Engines. From both EP82 and EP91 Cars...

Get your knowledge caps on... Whats what here....

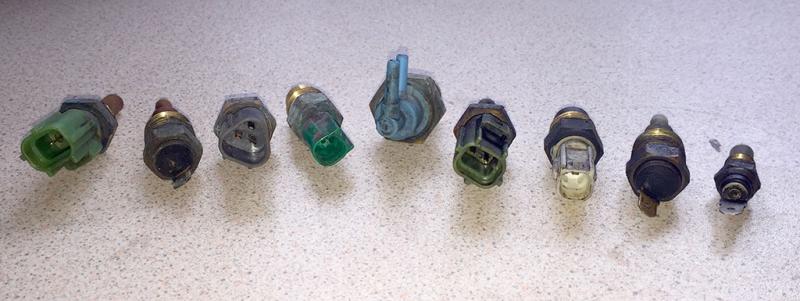

post-2707-0-21229500-1432557710_thumb.jp

From Left to Right...

coolant temp sensor for air con/hvac.

1, Green/2Pin - Coolant Temp Sensor (ECU) - Mk2/3 GT Turbo

2, Metal/1Pin - Coolant Temp Sensor (Air-Con) - Mk2/3 GT Turbo & Glanza V

3, Grey/3Pin - Coolant Temp Sensor (Dash & ECU) - Glanza V

4, Green/1Pin - Coolant Fan Switch - Mk2/3 GT Turbo & Glanza V

5, Blue/2Port - Idle Control/Choke Sensor - EP91 UKDM N/A

6, Green/2Pin - Coolant Temp Sensor (ECU) - Mk2/3 GT Turbo

7, White/1Pin - Coolant Fan Switch - Mk2/3 GT Turbo & Glanza V

8, Metal/1Pin - Coolant Temp Sensor (Air-Con) - Mk2/3 GT Turbo & Glanza V
9, Metal/1Pin - Coolant Temp Sensor (Dash) - Mk2/3 GT Turbo

Be good to try get a wiki entry to try and identify all these...

Link to post
Share on other sites

Based on memory (will check later)

9 temp switch

8 aircon

7 fan switch

6 different temp switch (there are 3)

5 I've never seen?

4 could be another temp switch?

3 never seen?

2 same as 8?

1 don't know

Edited by bucketep91
Link to post
Share on other sites

Based on memory (will check later)

9 temp switch

8 aircon

7 fan switch

6 different temp switch (there are 3)

5 I've never seen?

4 could be another temp switch?

3 never seen?

2 same as 8?

1 don't know

How certain on the ones you've got are you bucket? 100%?

5 is defo off an NA Rob yes! Duno what it is tho!?

Link to post
Share on other sites

1 is gt coolant temp sensor for ecu.

2 is coolant temp sensor for air con/hvac.

3 is glanza Coolant temp sensor incorporating ecu and dashboard.

4 is fan switch for gt/glanza located back of thermostat housing.

5 is idle control for 4efe or choke if you like.

6 is the same as 1

7 is same as 4 (possible different temp fan switch?)

8 is same as 2

9 is gt coolant temp sensor for dash.

You can also get blanks for sensors 2/8 if they didn't come with a/c as standard. Hope that helps.

Link to post
Share on other sites

It's to do with the radiator. The condensor on the front may transfer heat to the radiator and if the engine is overheating the air con will cut out allowing the ram air to cool the radiator. Due to the condensor being in front of the radiator the ram air effectively warms the air going through the condensor and can't cool the radiator effectively.

Edited by Flaminsam
Link to post
Share on other sites
  • 3 years later...

Hi I'm looking for the part number for the dash coolant temp sensor for a M3 EP82.

It's the one pin sensor no:9 on the list. It sits directly below the ecu temp sensor on the housing.

Mine's came apart when i tried removing it. Checked toyodiy for part no with no luck!

Or if anyone knows where I can get one. Thanks!

Link to post
Share on other sites
  • 2 years later...



On 5/25/2015 at 8:44 PM, Socks said:

Now then my darlings..



Got a big box full of various sensors from 4E-FTE and 4E-FE Engines. From both EP82 and EP91 Cars...



Get your knowledge caps on... Whats what here....

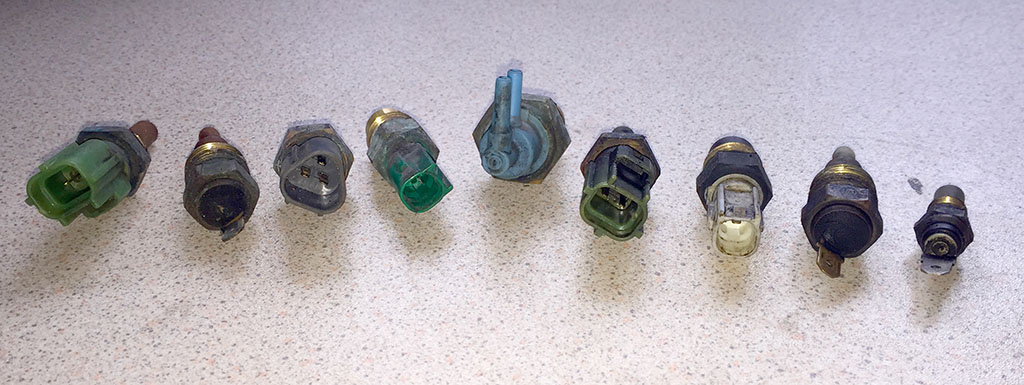

post-2707-0-21229500-1432557710_thumb.jp



From Left to Right...



coolant temp sensor for air con/hvac.



1, Green/2Pin - Coolant Temp Sensor (ECU) - Mk2/3 GT Turbo

2, Metal/1Pin - Coolant Temp Sensor (Air-Con) - Mk2/3 GT Turbo & Glanza V

3, Grey/3Pin - Coolant Temp Sensor (Dash & ECU) - Glanza V

4, Green/1Pin - Coolant Fan Switch - Mk2/3 GT Turbo & Glanza V

5, Blue/2Port - Idle Control/Choke Sensor - EP91 UKDM N/A

6, Green/2Pin - Coolant Temp Sensor (ECU) - Mk2/3 GT Turbo

7, White/1Pin - Coolant Fan Switch - Mk2/3 GT Turbo & Glanza V

8, Metal/1Pin - Coolant Temp Sensor (Air-Con) - Mk2/3 GT Turbo & Glanza V
9, Metal/1Pin - Coolant Temp Sensor (Dash) - Mk2/3 GT Turbo



Be good to try get a wiki entry to try and identify all these...

which one of the 3 pin coolant temp sensor is ground? which one is for the ecu? which one is for the dash?

Edited by danzambrano
