This has been a long term project for me. I've lost interest more times than enough basically due to having other more interesting cars.

My initial plan was to turbo it and make it a White SR replica with the decals, TTE splitter, TTE spoiler, set of speedines, recaro interior and oem extras.

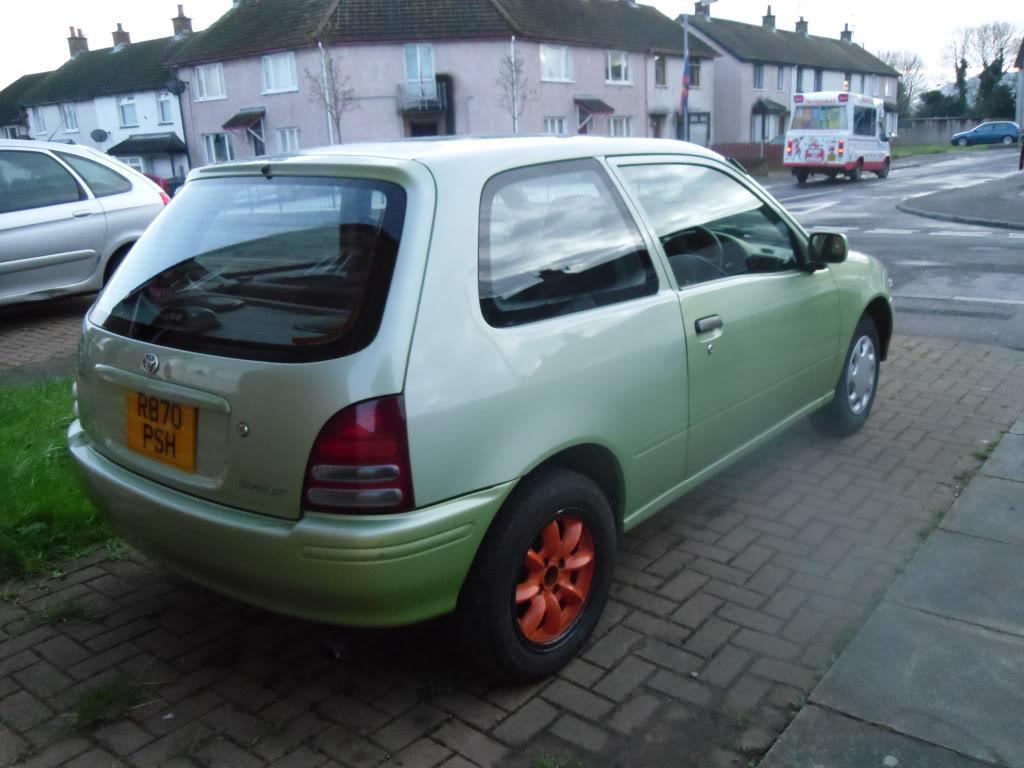

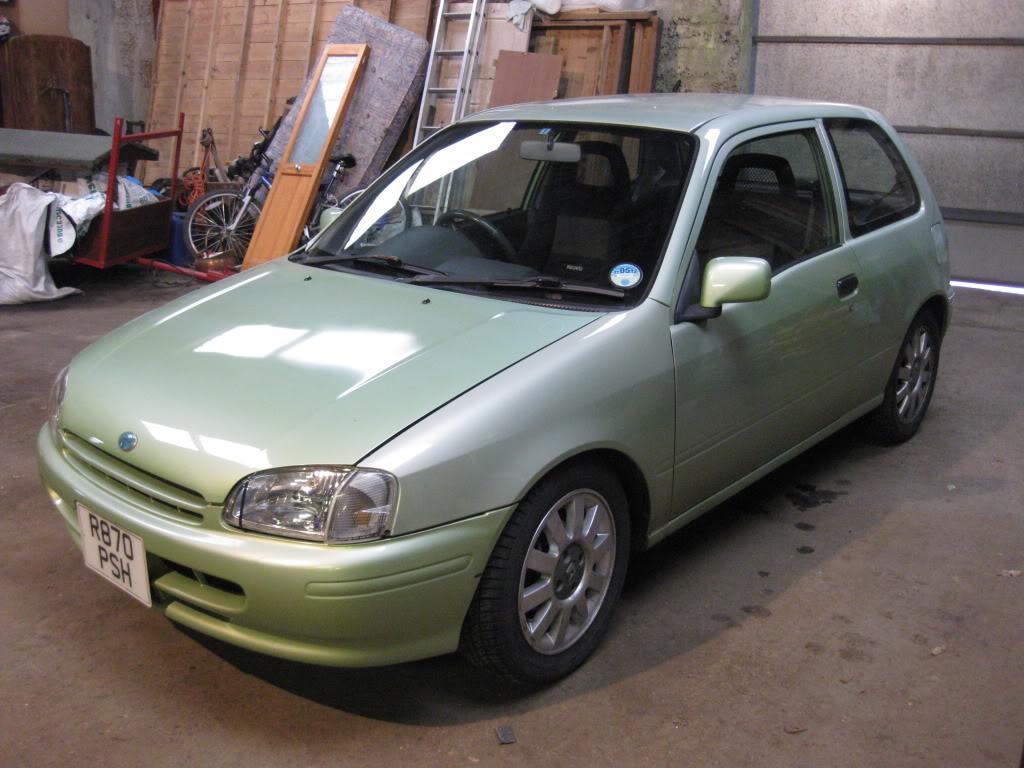

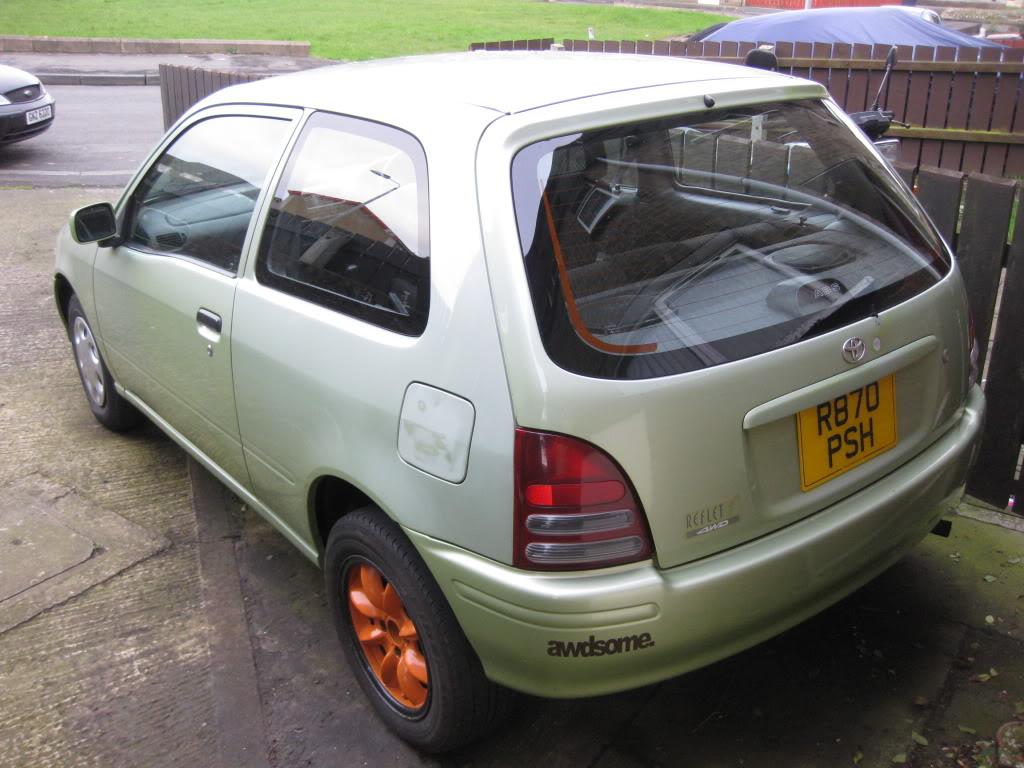

Anyway here's some pictures.

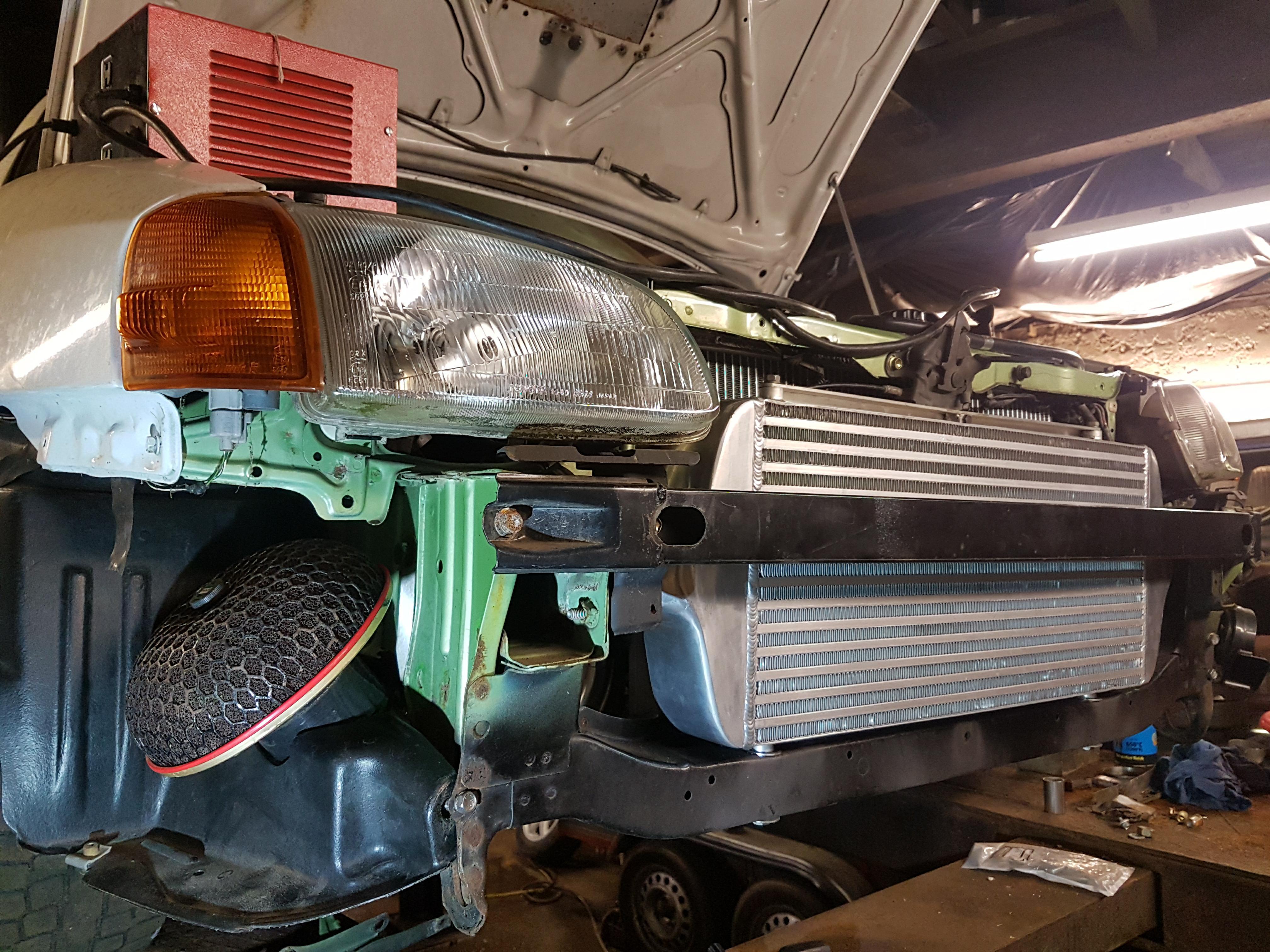

Glanza S front end fitted temporary to clear the intercooler. I bought one that would fit further back but it doesn't lineup with the turbo kit as nice as I'd like.

83a636b2b87dbd24119ee22c407698a3.jpg071aa35c0b4e292c103d6bf1b478ec0b.jpg205b279711dd507fc6808ca18eb975cd.jpg

Recaro rear seats and there is a Walbro fuel pump fitted in the tank underneath.


Glanza oem recaro fitted along with dash, steering wheel ect.

68de95a4ea82aba415bf8098ab2f46af.jpge73d4621fd241fc3a0b98e012ec6b56b.jpg0cbc2f59b226bbdfeafd08fc2950631f.jpg

I cut off the inside rear 4x4 seat bracket and welded it too the oem recaro rails then sand blasted them and powder coated them black.


I made this rad bracket, blasted and powder coated.


The engine was rebuilt with forged pistons and oem gaskets, water pump ect. Vf35 fitted currently but ideally I want something like a ct9 hybrid but more reliable.


I cut these out of a glanza shell I had and drilled the spot welds. The plan was to weld them into the rear struts and boot floor so I can fit a oem 3 point strut brace.

c7d5c1e3521eca7057049bab8d11c4d7.jpg629ba4be92bb8a22785bcc0747667a39.jpg982aa0f1a47d1698b5a5ed6eb118faa6.jpg55c40132ba2f640b70782fb3999f2454.jpgfdda2a99126bc2f8d714709ff04ce925.jpge2cac148f62f62ae60bd5de4cfb1008b.jpgffb4966e0bb610bac54c2981bf1049c4.jpgf28bc0092f46917a6dcfcaeab944c925.jpgfeb9b1c2ca364d3e0832f42e212bf015.jpg

Edited by ttestarlet

Share this post


Link to post
Share on other sites

I've sold my ep85 turbo and been working more at this.

I made a 2.5" stainless exhaust, it's 316l grade, mandrel bends, purged and tig welded using v clamps.

Also made the intercooler piping up to the same standard. Using black samco and constant torque clamps.

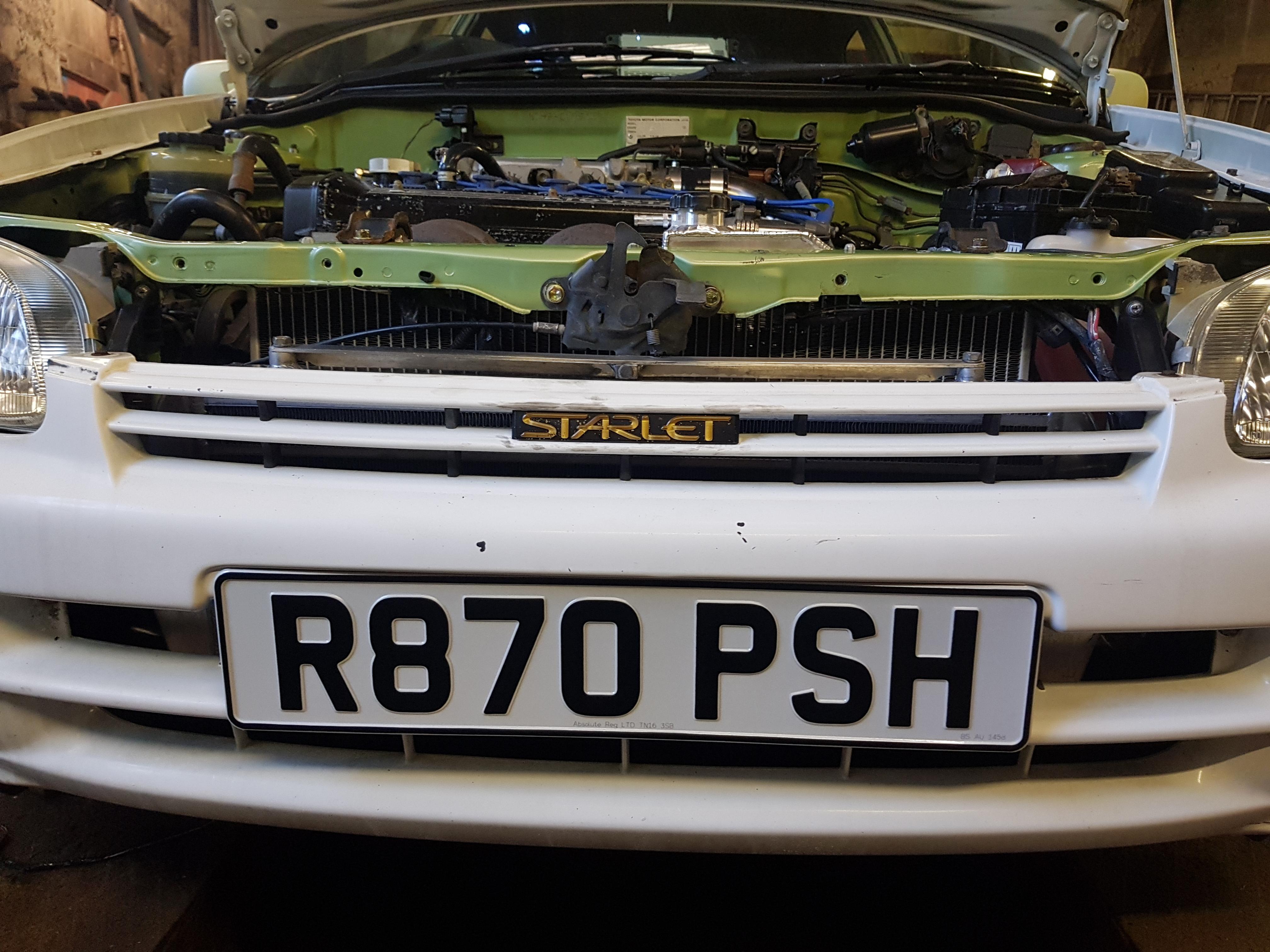

I've mounted a massive aluminum intercooler and full size aluminium radiator also. Just some small details to finish before it's complete and I'll upload the pics.

The turbo is now a tf035h, I'm looking to get fast response and usable power. Hopefully this turbo will deliver that.Posted ImagePosted ImagePosted Image

Sent from my SM-G950F using Tapatalk

Share this post


Link to post
Share on other sites

3m bristle brush on a cordless drill.

Air filter and front mount.


Sent from my SM-G950F using Tapatalk

Edited by ttestarlet

Share this post


Link to post
Share on other sites

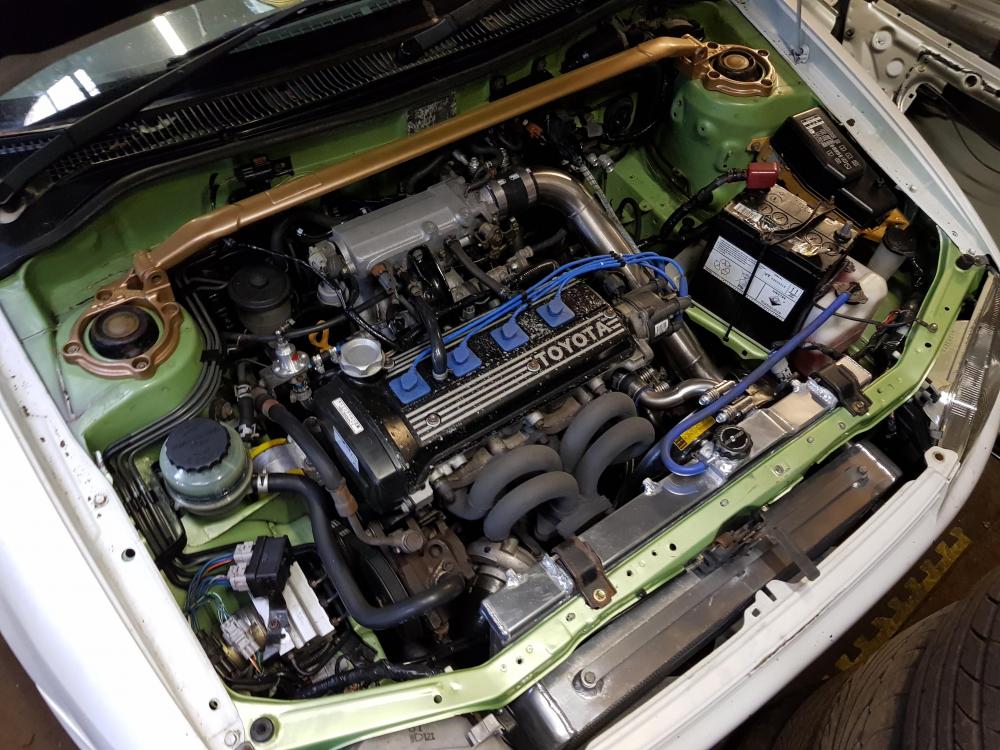

Engine bay is getting there. The tf035h actuator only holds 0.5bar so I'm.fitting a apexi avcr as neatly and professionally as possible using black pneumatic 8mm air line and o-clip crimps.

The radiator pipes are all done in 316 stainless, TIG welded and purged. The black samco joiners were cut on the lathe so the ends are perfect. All the clamps are mikalor.

The boost pipes are all stainless also, TIG'd and purged. Same again with black samco and mikalor clamps, the same with the HKS air filter pipe.

Share this post


Link to post
Share on other sites

build looks good mate. very similair looking to mine although its not 4wd.

wheres the intercooler from? i wanted to do a similair thing.

Share this post


Link to post
Share on other sites

Cheers pal. I got the intercooler from rally design. I wouldn't reccomend them. They are a terrible company to deal with.

Share this post


Link to post
Share on other sites
14 hours ago, ttestarlet said:

Cheers pal. I got the intercooler from rally design. I wouldn't reccomend them. They are a terrible company to deal with.

I'll second this! Lol

Share this post


Link to post
Share on other sites

thats a shame because thats the exact type of intercooler i want to shorten the route of mine and get of the stupidly heavy hdi one.

why were they bad to deal with?

Got any more updates on this build. really like what youre doing with it.

Share this post


Link to post
Share on other sites

I love the stock Glanza alloys and not much 4x4 starlets i see any more

Share this post


Link to post
