Hey guys,

Been looking at taking out the alarm system in my EP91 and noticed that the guy who wired it up did a crap job!

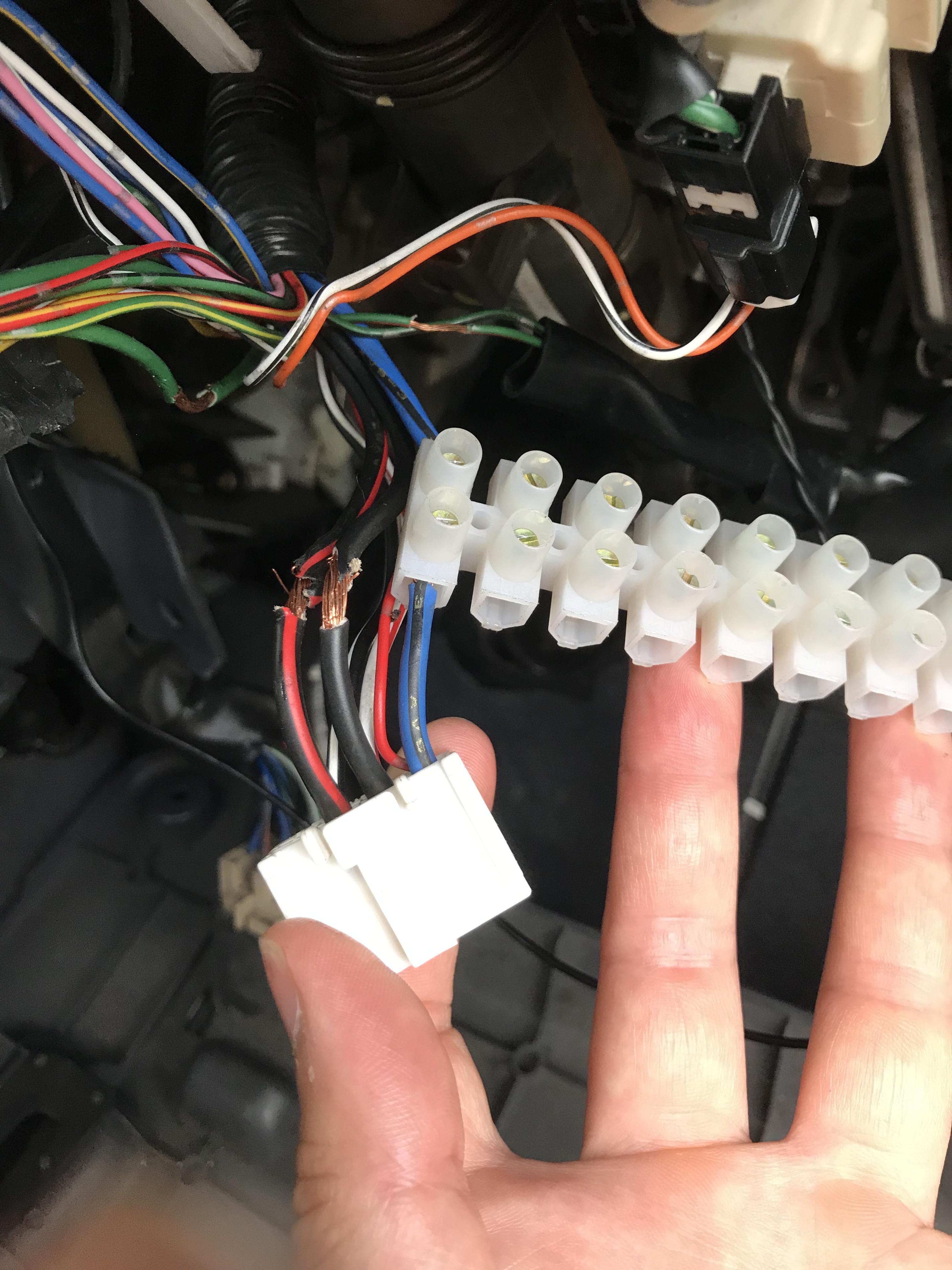

To get power and other things needed for the alarm he stripped the insulation off the wires he needed to use and then wrapped the wire around it and wrapped it up with insulation tape. no solder, no crimps, no nothing.

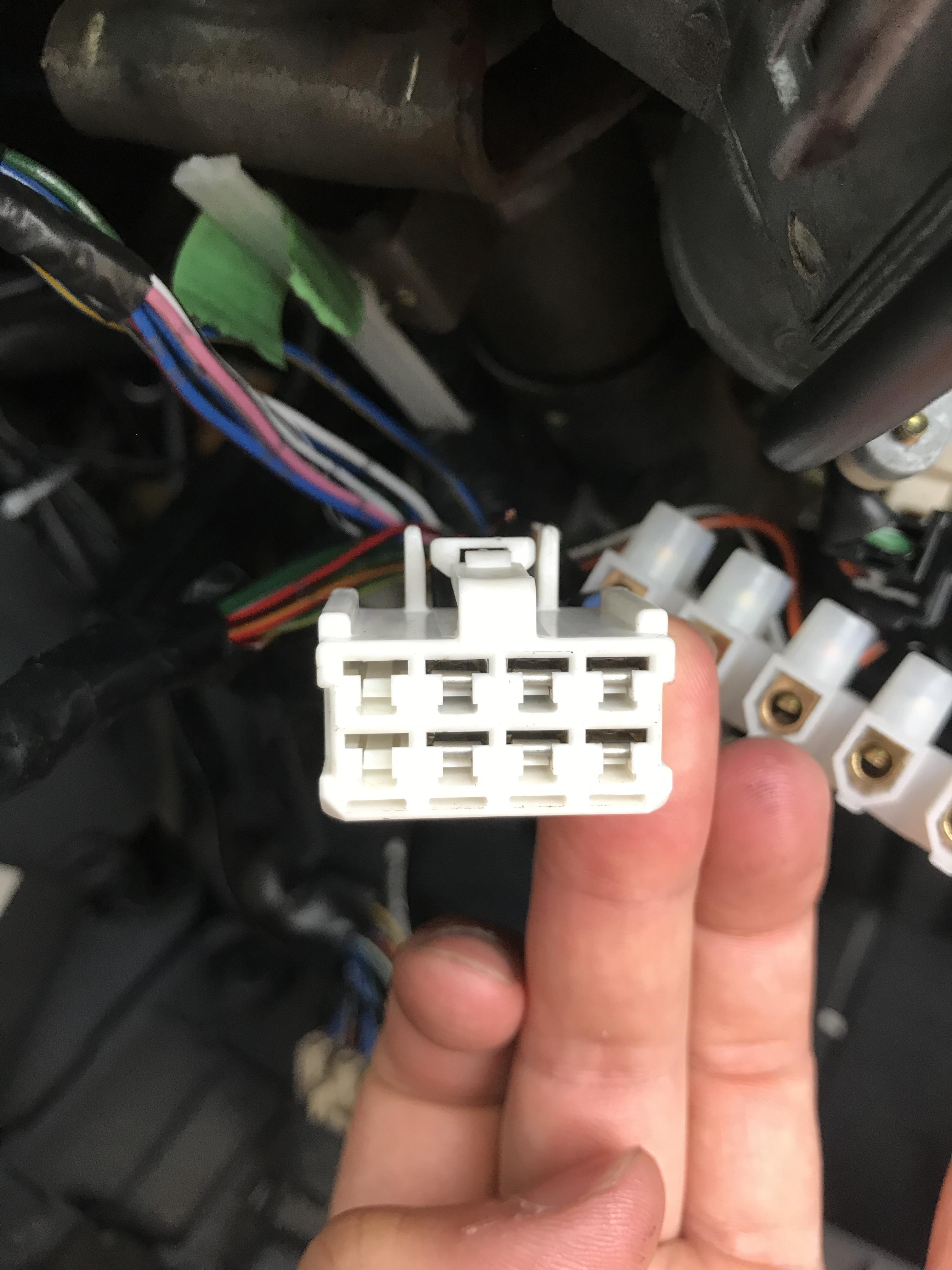

I was going to install something else into the car, but I cant attach the battery looking like it is with all the exposed wires. Is anyone able to provide me with a wiring diagram, or let me know which wires are which for the ignition.

Thanks in advanced.



Share this post


Link to post
Share on other sites

Wrap the bare wires with insulation tape.
