zubo3 Posted April 22, 2006 Share Posted April 22, 2006 im chasing the exploded view of the 4efte engine, i have one that shows you were all the pipes and turbo attach to. but im after the one that show you all the seals and of the engine etc.any help very much apperciated Quote Link to post Share on other sites
Blue Icarian Wings Posted April 22, 2006 Share Posted April 22, 2006 The only thing I know of is this here try the References links to see if they have any more info Quote Link to post Share on other sites
lobotomy Posted April 22, 2006 Share Posted April 22, 2006 Exploded pics of 4EFTE: Shows gaskets etc (if that's what you're after)(Just thought I'd hotlink the info you justed linked to ) Quote Link to post Share on other sites
zubo3 Posted April 25, 2006 Author Share Posted April 25, 2006 thanks for that but im after this part to be exploded. Quote Link to post Share on other sites
ben_j Posted April 25, 2006 Share Posted April 25, 2006 give it a month or two and i'll prob explode mine. then i can take pictures if you want Quote Link to post Share on other sites
lobotomy Posted April 25, 2006 Share Posted April 25, 2006 Sorry mate, dunno if anyone with the EPC might have an exploded diagram of the block... obviously the main gaskets will be you head and sump. Then you'll have the rubber seal on the rocker cover.Maybe someone can have a look through the EPC for you though. Quote Link to post Share on other sites

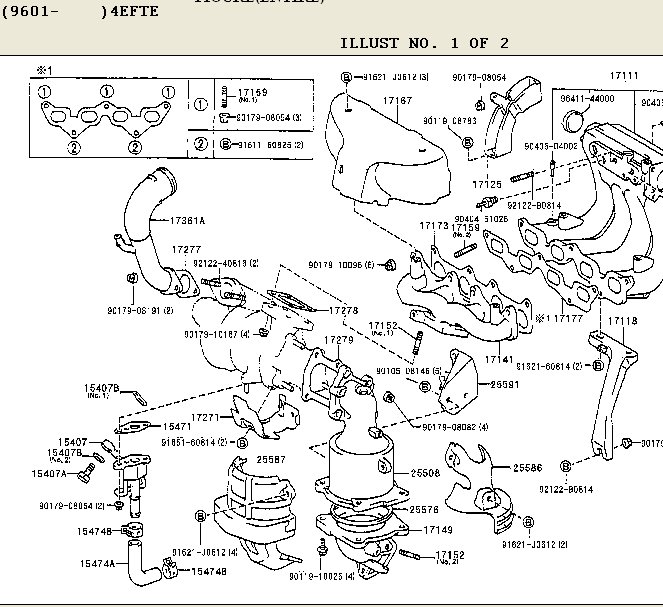

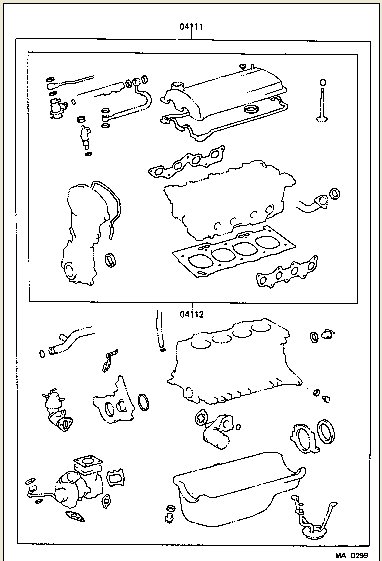

Martin E Posted April 30, 2006 Share Posted April 30, 2006 I hope this helps..These pic's are from the EPC Quote Link to post Share on other sites
lilmiss Posted January 30, 2008 Share Posted January 30, 2008 hi the last post on here i cant get the links to work.. would you be able to send me them please? thanks Quote Link to post Share on other sites
StarletRick Posted January 30, 2008 Share Posted January 30, 2008 i have LOADS at home, ill put some up when i get in. Quote Link to post Share on other sites
