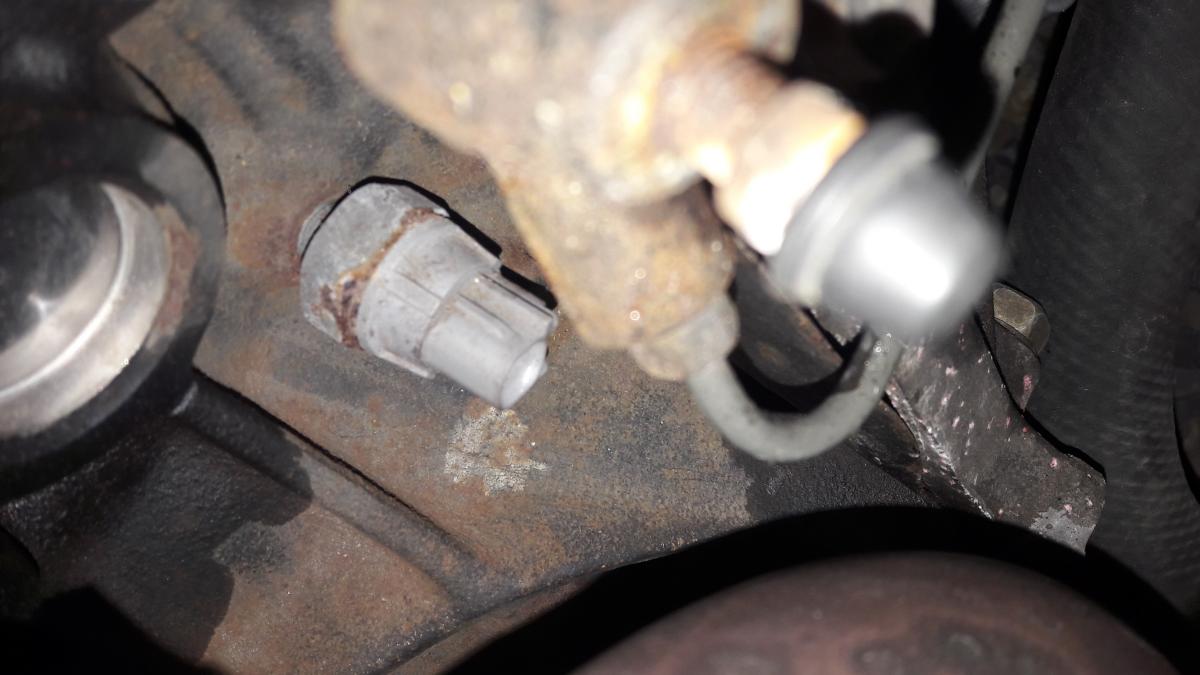

SpikeyJp_68 Posted May 4, 2017 Share Posted May 4, 2017 Im having trouble with 2 plugs.. the oil pressure sensor and lambda. Ive used the lambda off my n/a as id imagine theyre the same but cant find a plug.. also i think ive located the plug for the pil pressure sensor but it doesnt nearly reach it. Is it the right one ? Is this the oil pressure sensor plug ?Also the plug for the lambda seems non existant ? If theyre even the same as the n/a ? Quote Link to post Share on other sites
T-dog Posted May 4, 2017 Share Posted May 4, 2017 Different lambda sensor on na's , Glanza ones are 1 pin connectors 👍🏼 , the plugs for it will be on top of the gearbox near the thermostat housing Quote Link to post Share on other sites

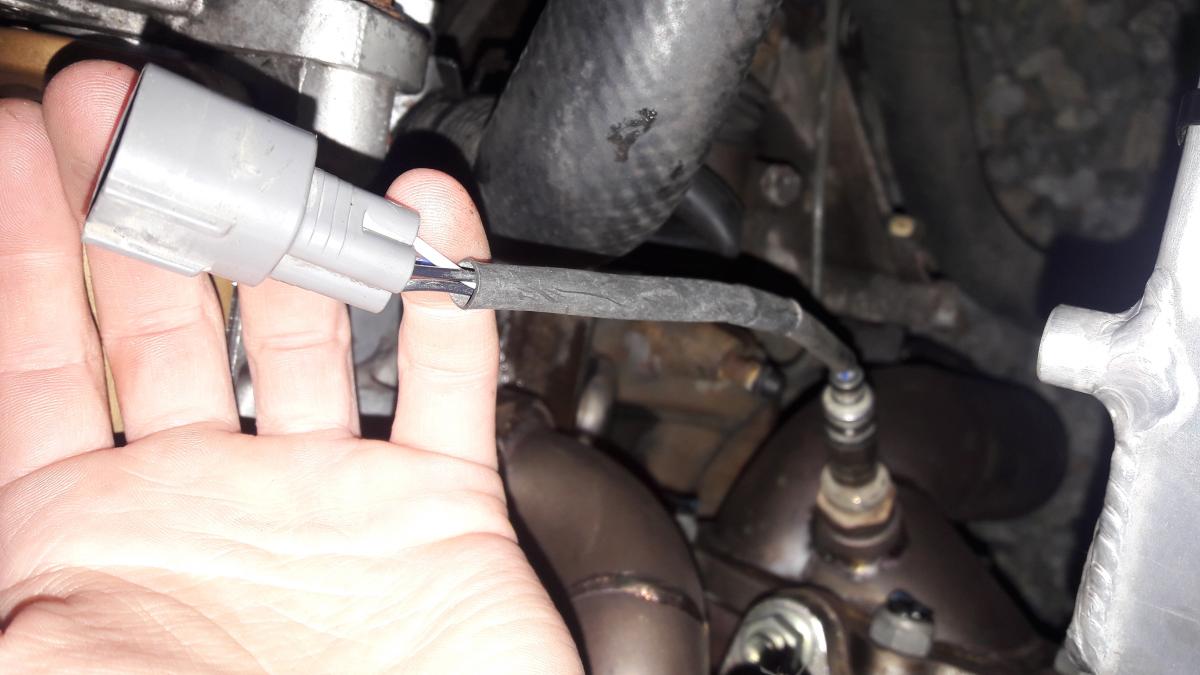

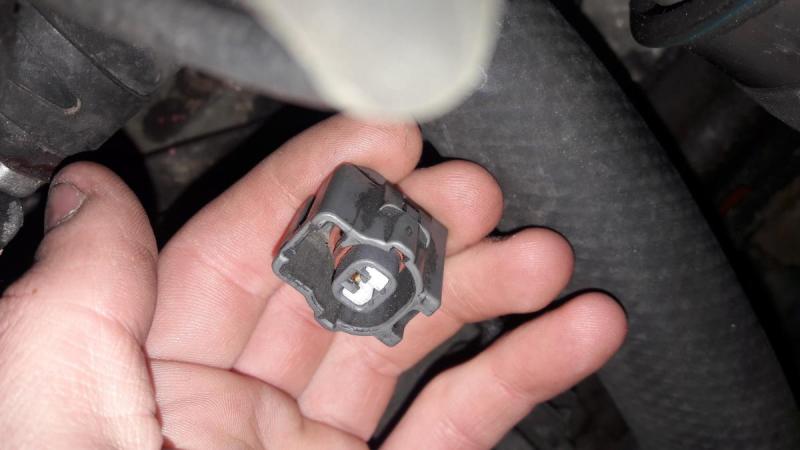

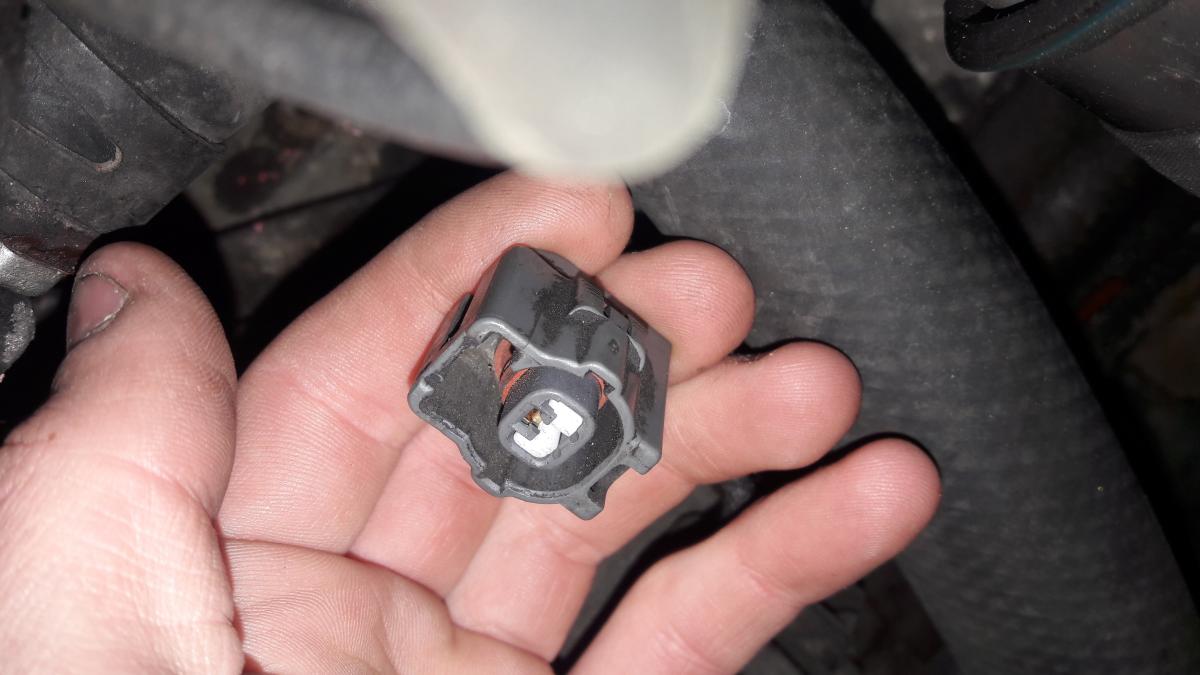

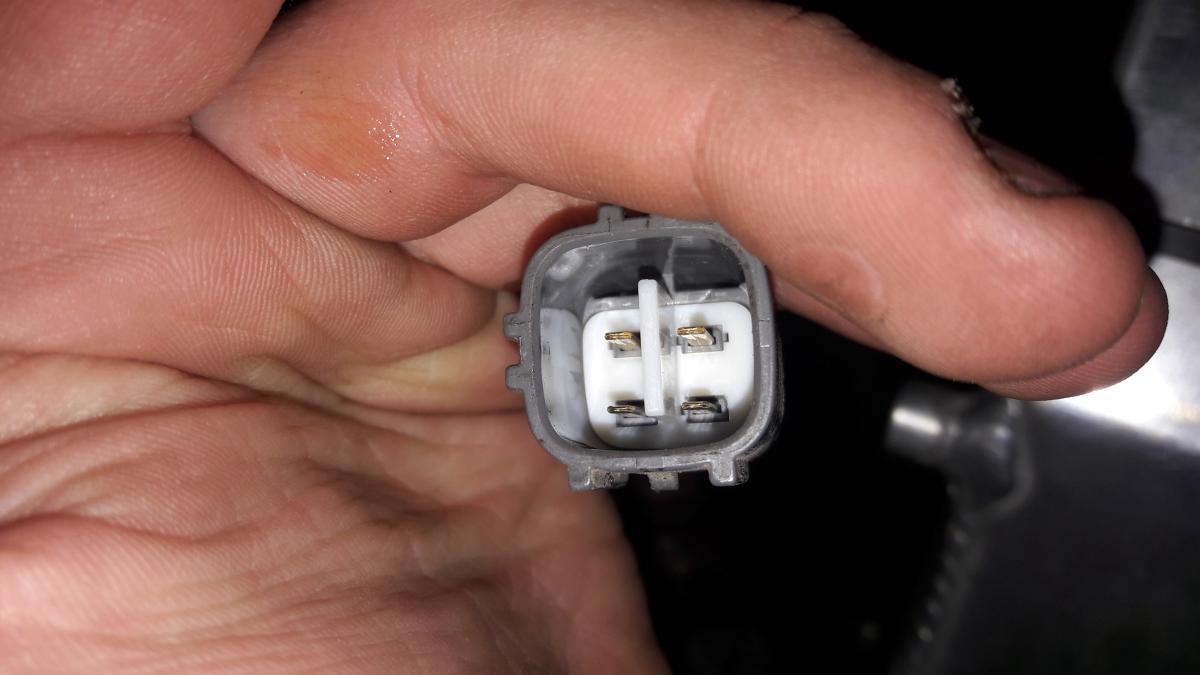

SpikeyJp_68 Posted May 4, 2017 Author Share Posted May 4, 2017 The 1st plug is a 1 wire plug looks yellow.My lambda has 4 wiresDifferent lambda sensor on na's , Glanza ones are 1 pin connectors 👍🏼 , the plugs for it will be on top of the gearbox near the thermostat housingOkay cool thanks mate. The 1st plug has 1 wire on it will that be it ? Looks yellow Quote Link to post Share on other sites
T-dog Posted May 4, 2017 Share Posted May 4, 2017 That first photo is the lamda plug for a Glanza sensor Quote Link to post Share on other sites
T-dog Posted May 4, 2017 Share Posted May 4, 2017 Right for the oil pressure switch , this is the connector and what the sensor looks like 👍🏼 Quote Link to post Share on other sites
Ollieh17 Posted May 4, 2017 Share Posted May 4, 2017 Oil pressure plug is a spade connector with a black cover on it Quote Link to post Share on other sites
SpikeyJp_68 Posted May 4, 2017 Author Share Posted May 4, 2017 Okay so again the n/a oil pres. Sensor is different. Have on of the glanza ones on my 4efte block which ill get. Would you happen to know either the colour of the wire for it or what part of the loom it comes off ? Didnt see a plug like that on my loom except the single pin plug for a sensor on the thermostat housing that seemed very long for where it was going Quote Link to post Share on other sites
T-dog Posted May 4, 2017 Share Posted May 4, 2017 Here is a wiring diagram for the major sensors with colour of the wires , the sensor wire comes around near the wires that for the thermostat housing and dizzy and oxygen sensor . So look around the gearbox area or behind inlet , my be flouting about somewhere , the wire normally has like a hard black plastic shielding around it with the spade connection on the end . Hope this helps Quote Link to post Share on other sites
SpikeyJp_68 Posted May 4, 2017 Author Share Posted May 4, 2017 Here is a wiring diagram for the major sensors with colour of the wires , the sensor wire comes around near the wires that for the thermostat housing and dizzy and oxygen sensor . So look around the gearbox area or behind inlet , my be flouting about somewhere , the wire normally has like a hard black plastic shielding around it with the spade connection on the end . Hope this helps Cheers pal thats a great help. Thank you both very much Quote Link to post Share on other sites
Ollieh17 Posted May 5, 2017 Share Posted May 5, 2017 Pretty sure it was a yellow wire under the tape or conduit Quote Link to post Share on other sites
