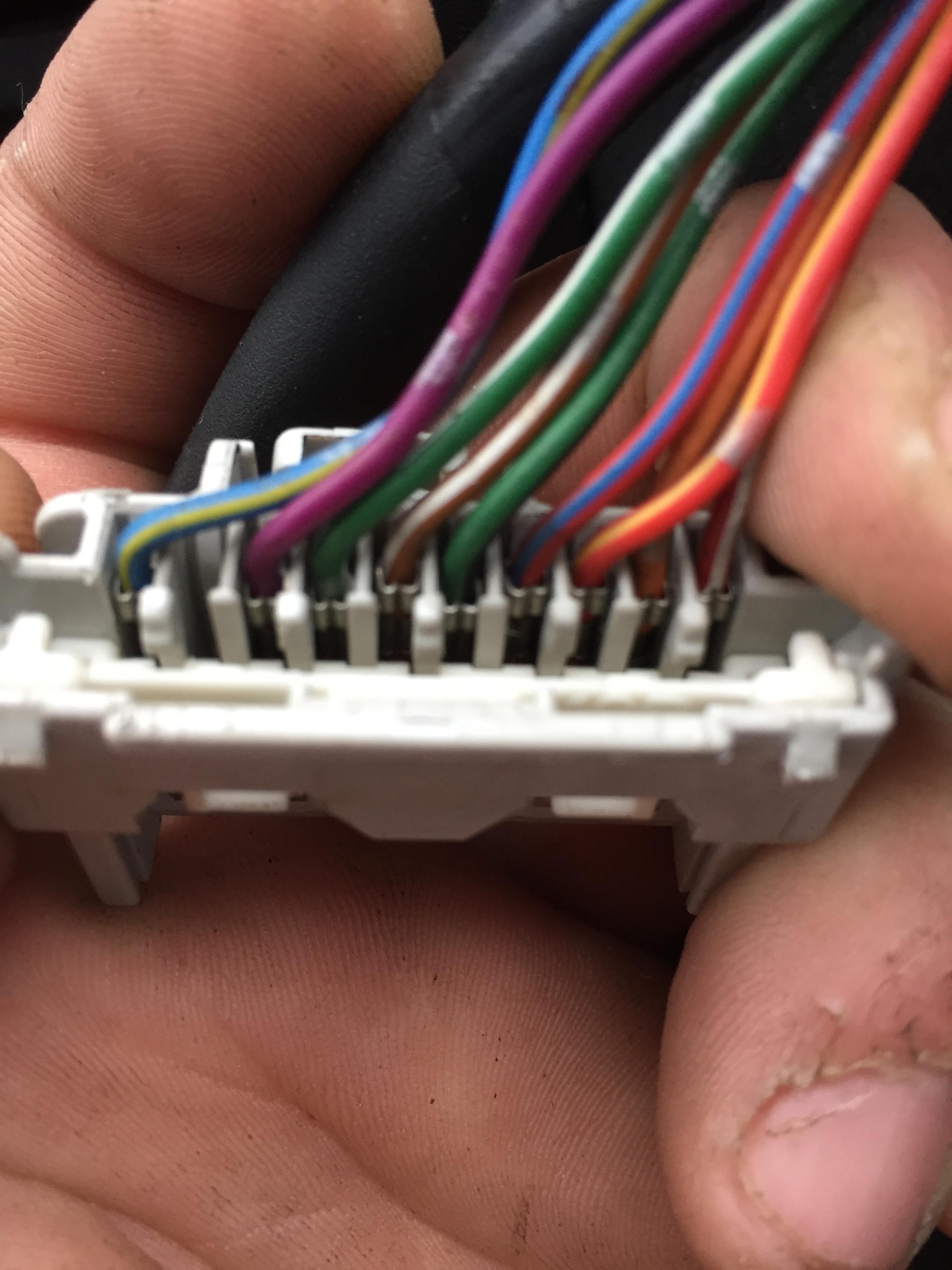

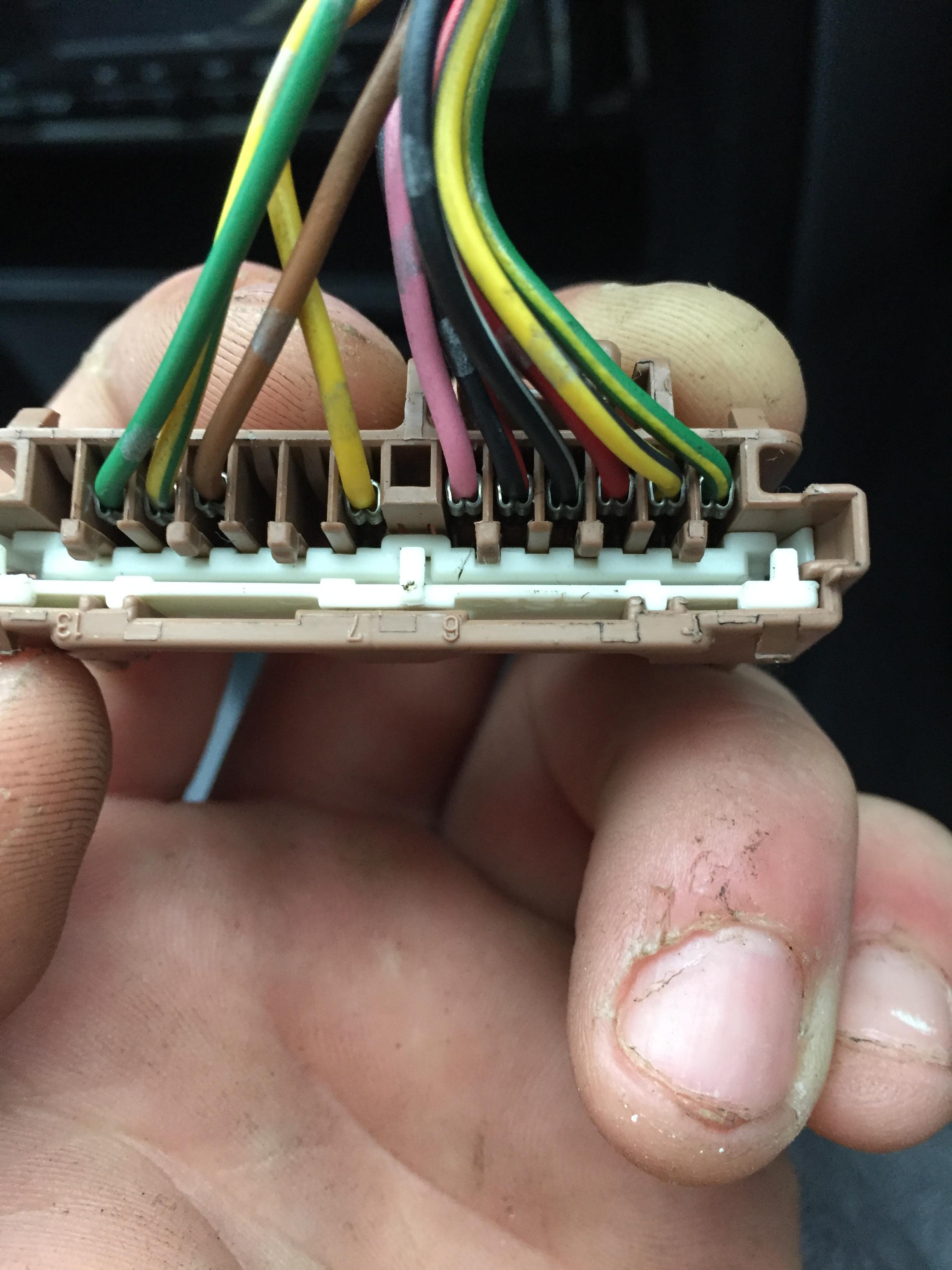

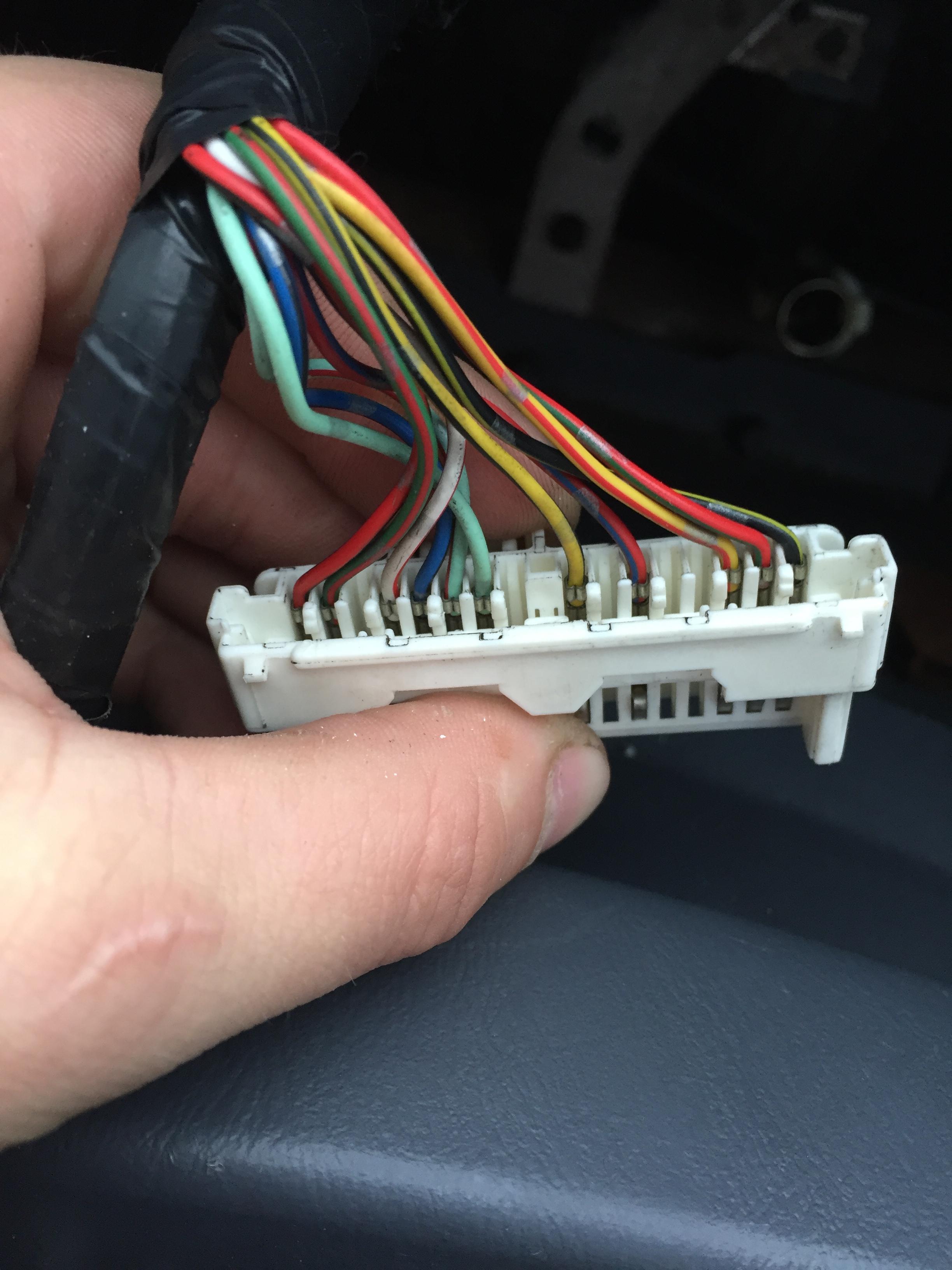

J05H Posted November 1, 2020 Share Posted November 1, 2020 Hey guys first post and am really stuck. I just bought a set of rev counter dials and and trying to figure out how to repin my connectors for them to work but the only guide I can find on here is what I believe to be 98 spec loom any information will help me allot as I am not good with wiring. my car is 1997 N/A jap import starlet if that helps not sure of the model here’s pictures of my connectors if that helps😊 Quote Link to post Share on other sites
Sam44 Posted November 1, 2020 Share Posted November 1, 2020 ive just fitted recently some 97 glanza v trd clocks into my uk ep91 1997 4efe. ill get my mate to email me the wiring diagrams I put together after the install. ill put these up see if it helps you. Quote Link to post Share on other sites
J05H Posted November 2, 2020 Author Share Posted November 2, 2020 Cheers dan I really appreciate it I noticed I don’t have pin 21 for my rpm signal on my ecu🥺what should I do there Quote Link to post Share on other sites
Sam44 Posted November 2, 2020 Share Posted November 2, 2020 (edited) mine is the cd model starlet it had a engine rpm signal at the clocks, but if you are stuck here there is a engine rpm signal wire at the diagnostic socket used for testing equipment just cut this off the socket and use this to wire threw. ive not come across one member on any forum (starlet owner) that has ever used this diagnostic socket to its full potential. so knowing that feel free to use it for aftermarket equipment/conversions. im working away from the uk just at present and im not back till in the new year, im just waiting on a friend/co worker ho is helping build the starbo. ive messaged him to Email me the diagrams I draw up to convert the uk cd/sr clocks to the glanza v clocks. Edited November 2, 2020 by Sam44 Quote Link to post Share on other sites
J05H Posted November 2, 2020 Author Share Posted November 2, 2020 That’s really great man really should help me out but I ran into issues earlier with lights not working behind the dash and now I just put it back to the way it was before I started depinning and now nothing works on my old clocks I really don’t know what to do at this point 🤷♂️ Quote Link to post Share on other sites
Sam44 Posted November 2, 2020 Share Posted November 2, 2020 (edited) There's a fuse for the clocks in the cab fuse holder under the steering column. It's easy to burn out the printed circuit board on the rear of the clocks. Edited November 2, 2020 by Sam44 Quote Link to post Share on other sites
Claymore Posted November 2, 2020 Share Posted November 2, 2020 (edited) I've had a look through the wiring diagrams I have for the UK 96/97 starlets and the wire colours / positions are different to your photos. Are the plug photos as Toyota made them or after you started moving things? Also what engine has the car got? The signal for the clocks comes from the distributor wiring on a UK model. But you can use pin 21 at the ECU instead or the one found in the diagnostic port also. Edited November 2, 2020 by Claymore Quote Link to post Share on other sites
J05H Posted November 2, 2020 Author Share Posted November 2, 2020 (edited) Hey claymore yes this is how Toyota left them and mine is a jap import model but has no rev counter for some reason or rpm signal so I’m going to do as Sam mentioned above 😁 but the rev counter clocks I have are out of a U.K model starlet Edited November 2, 2020 by J05H Quote Link to post Share on other sites
J05H Posted November 2, 2020 Author Share Posted November 2, 2020 Also in pin 21 on Ecu connector 1 there is no wire in there but I have a green wire on my distributor so mabey this could work? Quote Link to post Share on other sites
Sam44 Posted November 3, 2020 Share Posted November 3, 2020 (edited) its alittle crazy but the jdm vehicles are not only wired differently but different colors. another thing here as well is the auto ems is a lot more advanced than the manual. Edited November 3, 2020 by Sam44 Quote Link to post Share on other sites
Claymore Posted November 3, 2020 Share Posted November 3, 2020 Yep its totally bonkers! Which is why I asked what engine is in the car, apparently there was an option of 2E and a diesel for some countries? Never seen or heard of one though. The UK 4efe (96/97) has a black signal wire for the tacho on the brown plug at position 6. This wire is shielded to stop any interference. The photos above show a pink wire in place?! I would use the diagnostic port signal, there was a guy on here who used a spade connector and just plugged it in to the port so there was no need to cut the wiring but the port cover will have to be left open. The green wire from the distributor is to communicate with the ecu to run the engine so I'd leave it alone unless absolutely necessary. Again this is all UK model stuff! Think the later models from 98/99 are different also! The fuse box certainly is anyway. From what I've read people have used the plastic circuit on the back of the clocks to trace the wires. Start with one plug and write down its wire colour and position. Then follow the tracks in the plastic circuit to see where it goes on the clocks, repeat for all plugs. Then do the same on the new clocks (following from the item on the clocks back to its connector pin). Then you know what the car wires do and where they should go on the new clocks. Then find a suitable feed for the missing wires. Not too difficult, just take your time. Quote Link to post Share on other sites
