Help needed: Ep82 loom wires


Recommended Posts

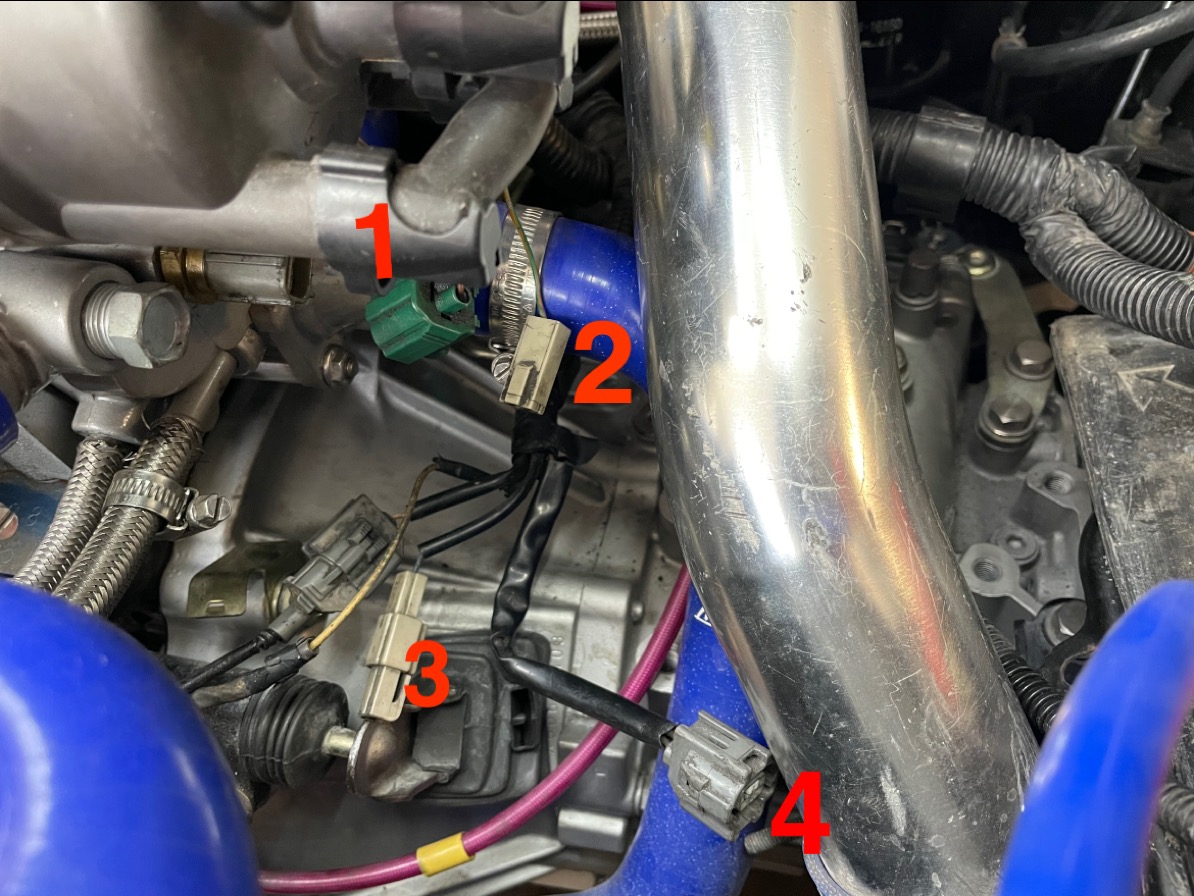

1 - coolant sensor

2 - coolant gauge on dash cluster

3 - for AC sensor on thermostat housing, you no longer have it, there is a bolt there instead. (Irrelevant)

4 - cat temp sensor (irrelevant)



Should be a green coolant temp sensor for the green plug 1, your sensor is grey. Does it fit?

Link to post
Share on other sites
1 hour ago, daniel_g said:

1 - coolant sensor

2 - coolant gauge on dash cluster

3 - for AC sensor on thermostat housing, you no longer have it, there is a bolt there instead. (Irrelevant)

4 - cat temp sensor (irrelevant)



Should be a green coolant temp sensor for the green plug 1, your sensor is grey. Does it fit?

Thanks Dan, I wasn’t sure either so 1 plugs into the coolant temp sensor but it’s grey and green.

For 2 where is the other end for this to plug into or is it meant to be on the thermostat housing?

The thermostat housing is from a glanza V and my looms are ep82

Link to post
Share on other sites
On 4/27/2021 at 7:51 AM, daniel_g said:

2 - should be in the thermostat housing aswell.

It is only for the cluster temp gauge.

You could fit an aftermarket coolant temp gauge.

Managed to get hold of the correct thermostat housing so will replace it.

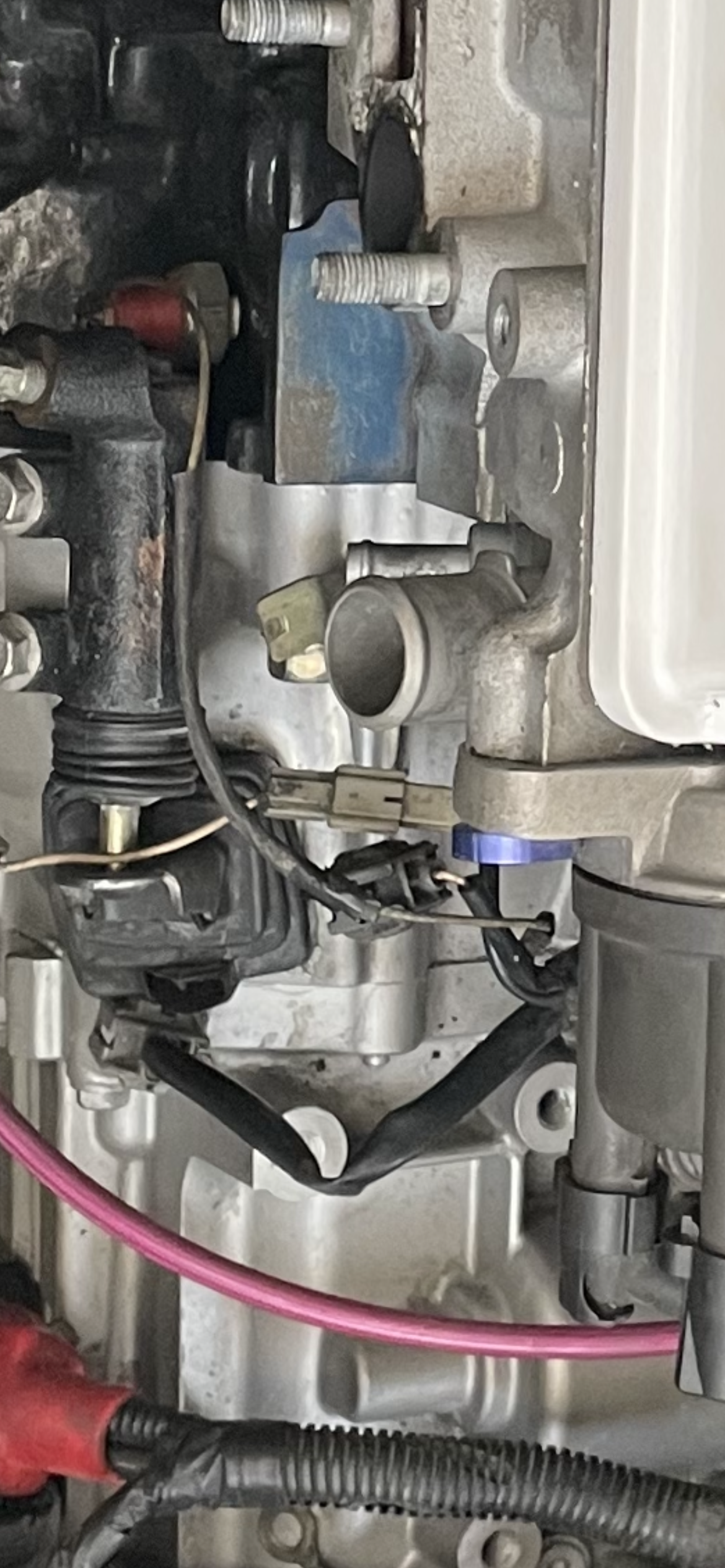

Do you know where this single wire goes that is going over the master cylinder? I’ve just earthed it, is that right?


Edited by Nilz90
Link to post
Share on other sites
  • 2 months later...

Does anyone know if my coolant temp sensor on my gt is grey and the plug is green could it cause any issues or this is fine?

Also my fan is on constantly could this be due to the fan switch sensor being green and the plug being grey? The A/C pressure sensor is plugged in.

Link to post
