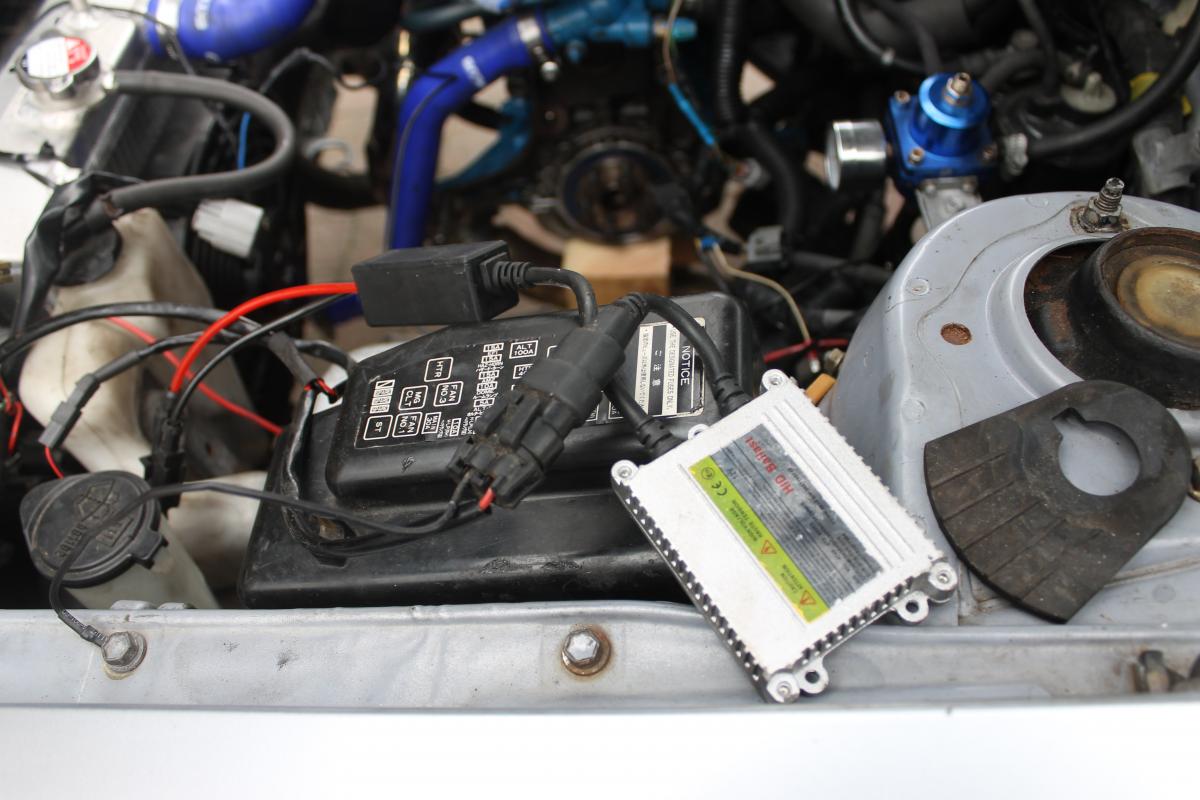

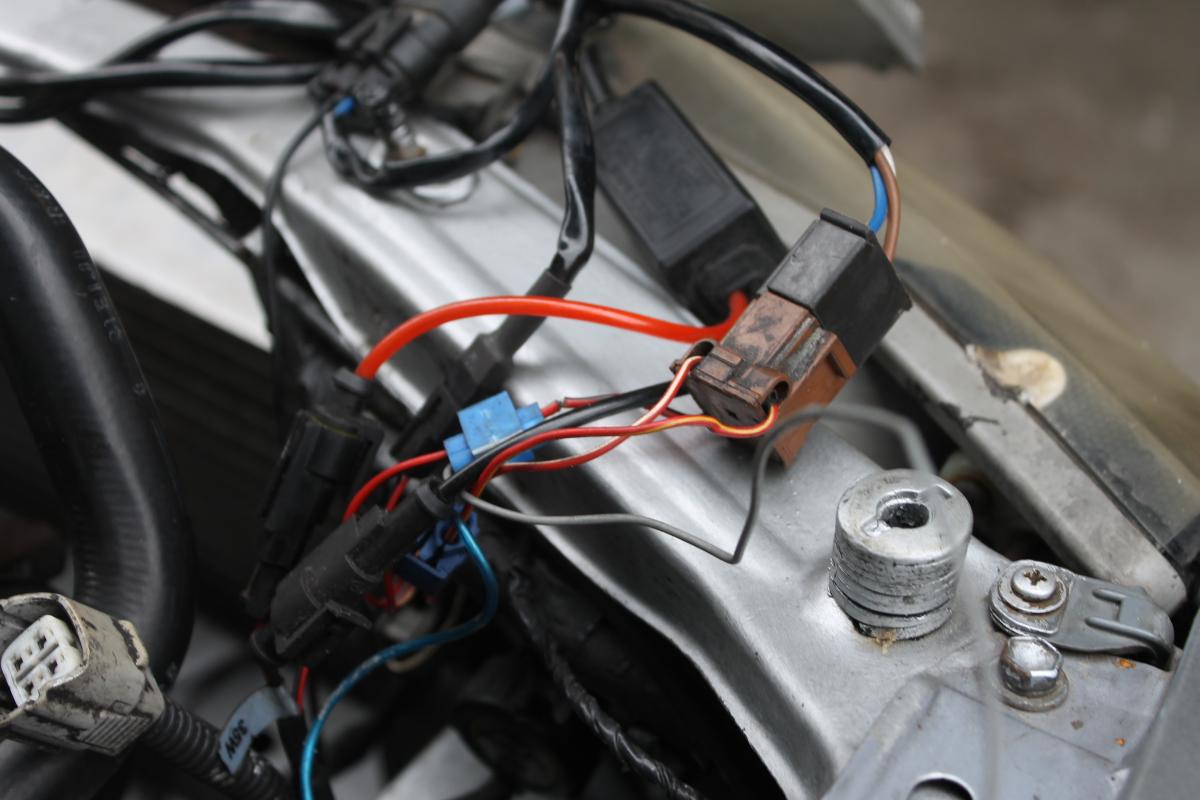

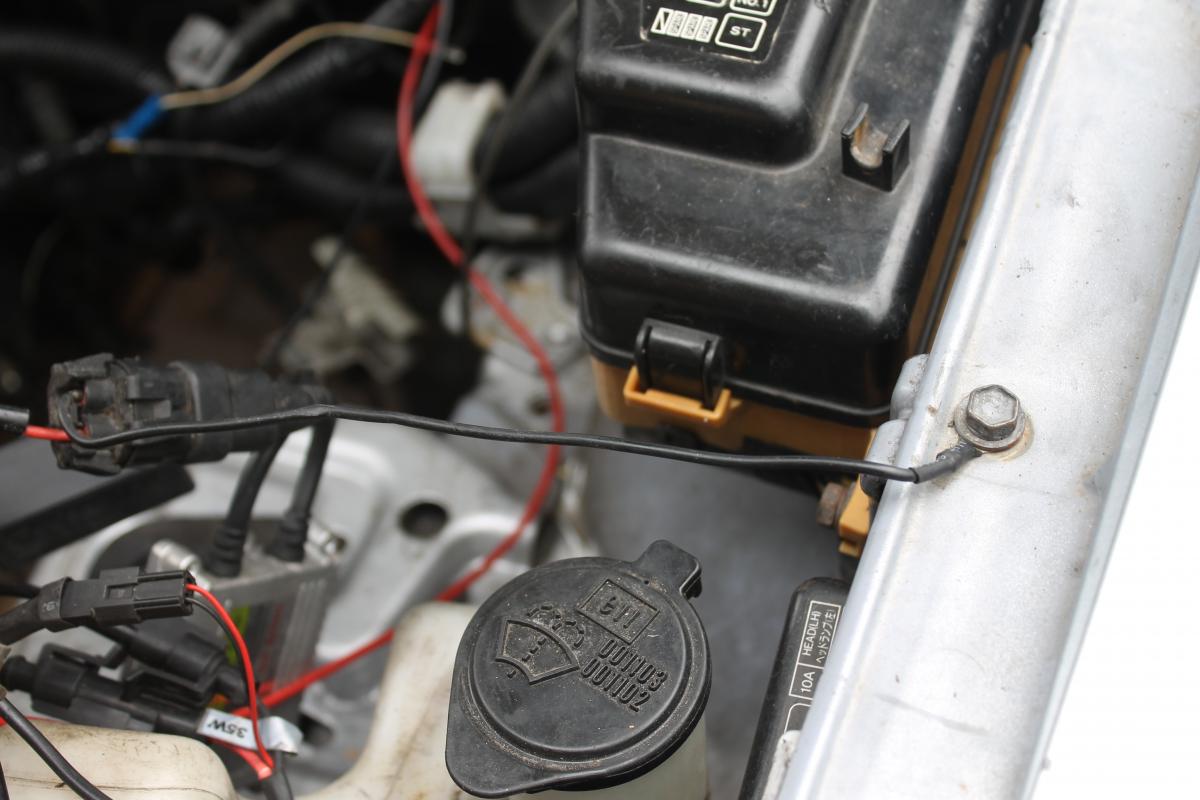

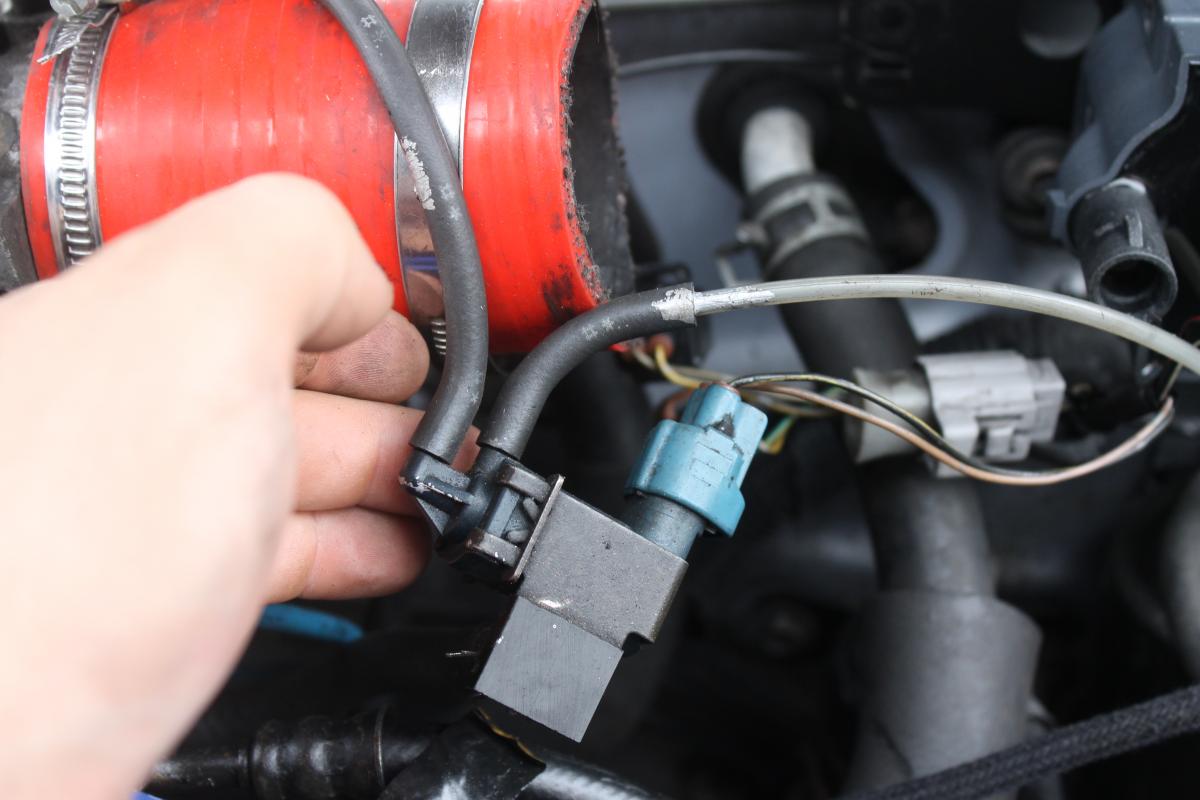

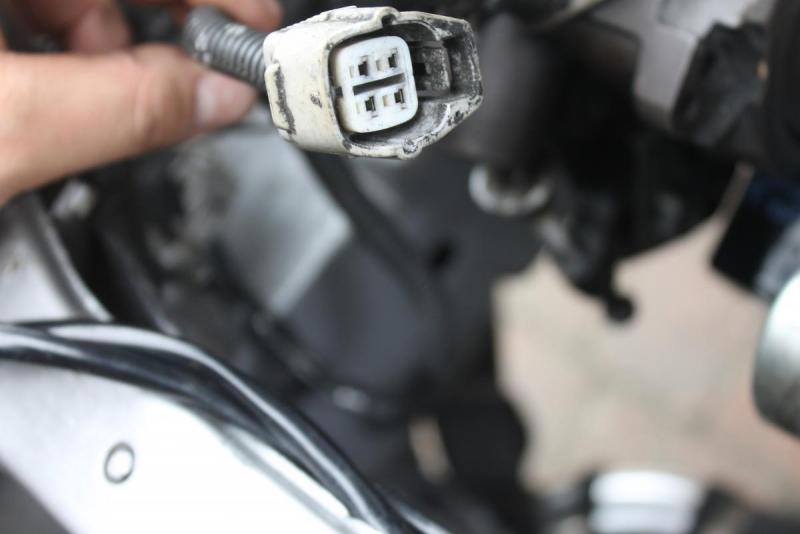

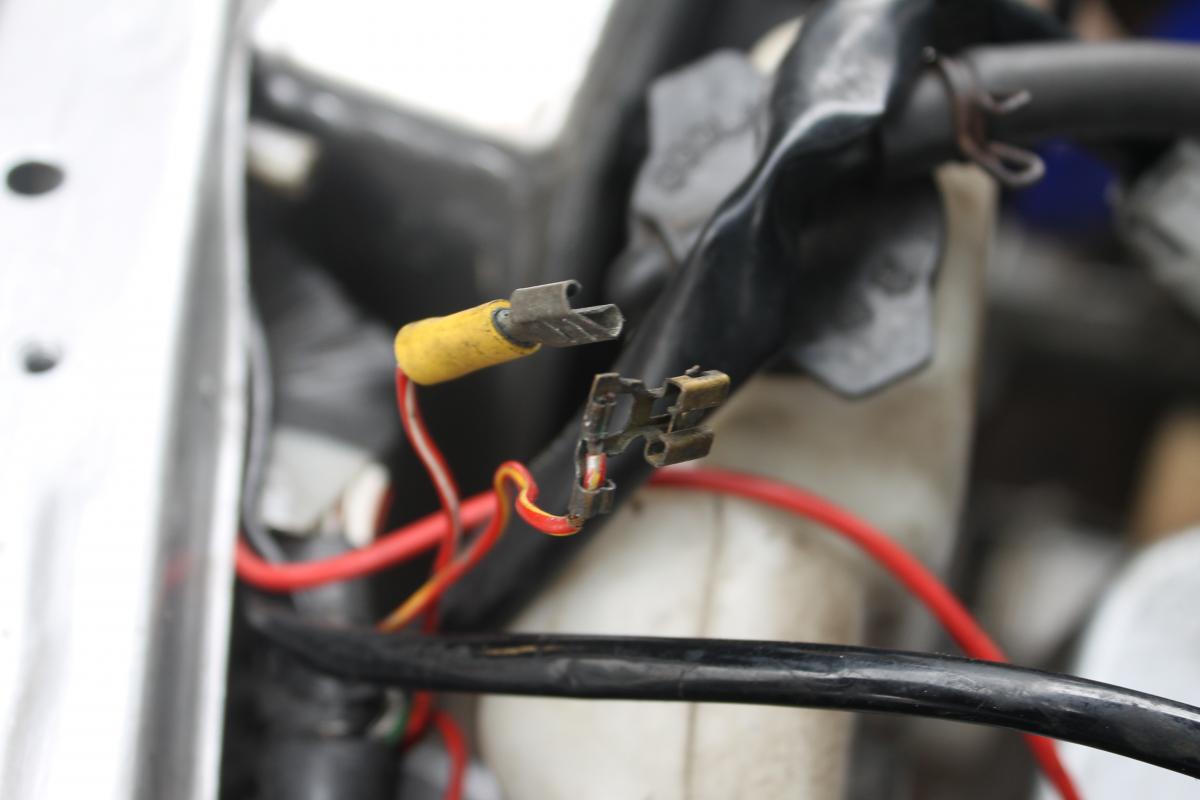

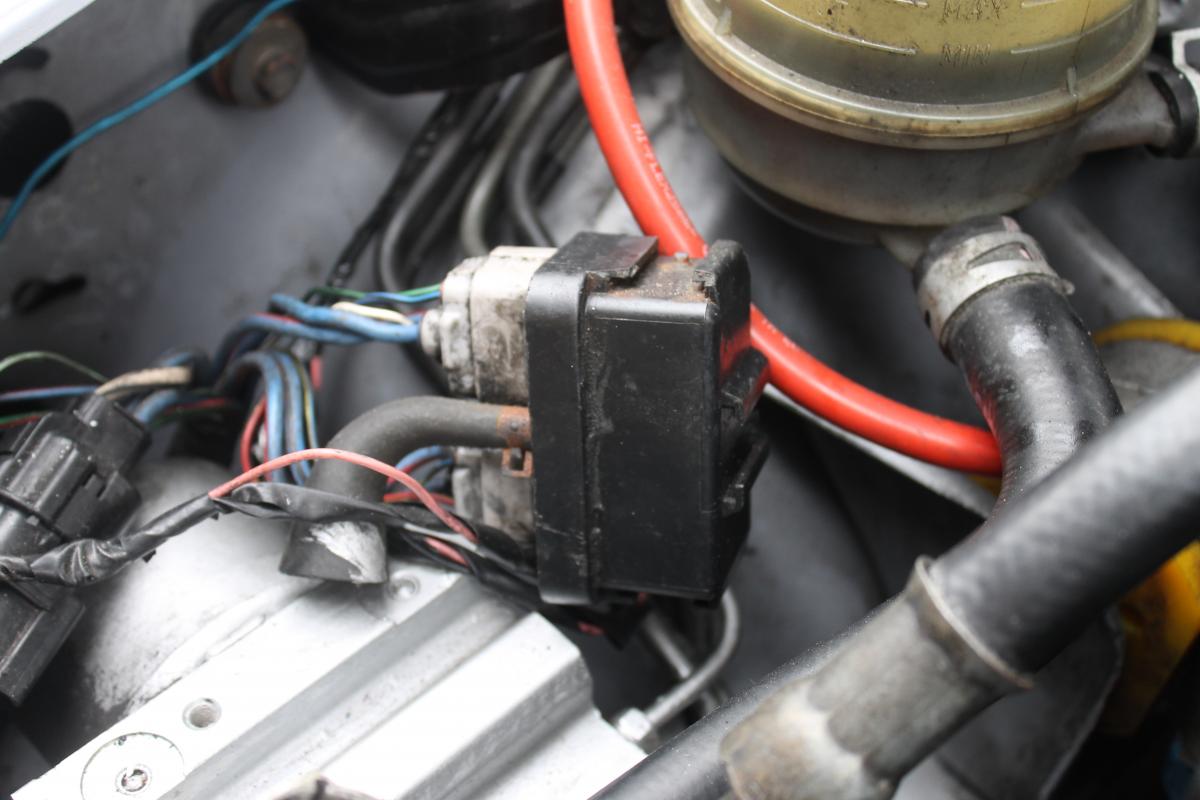

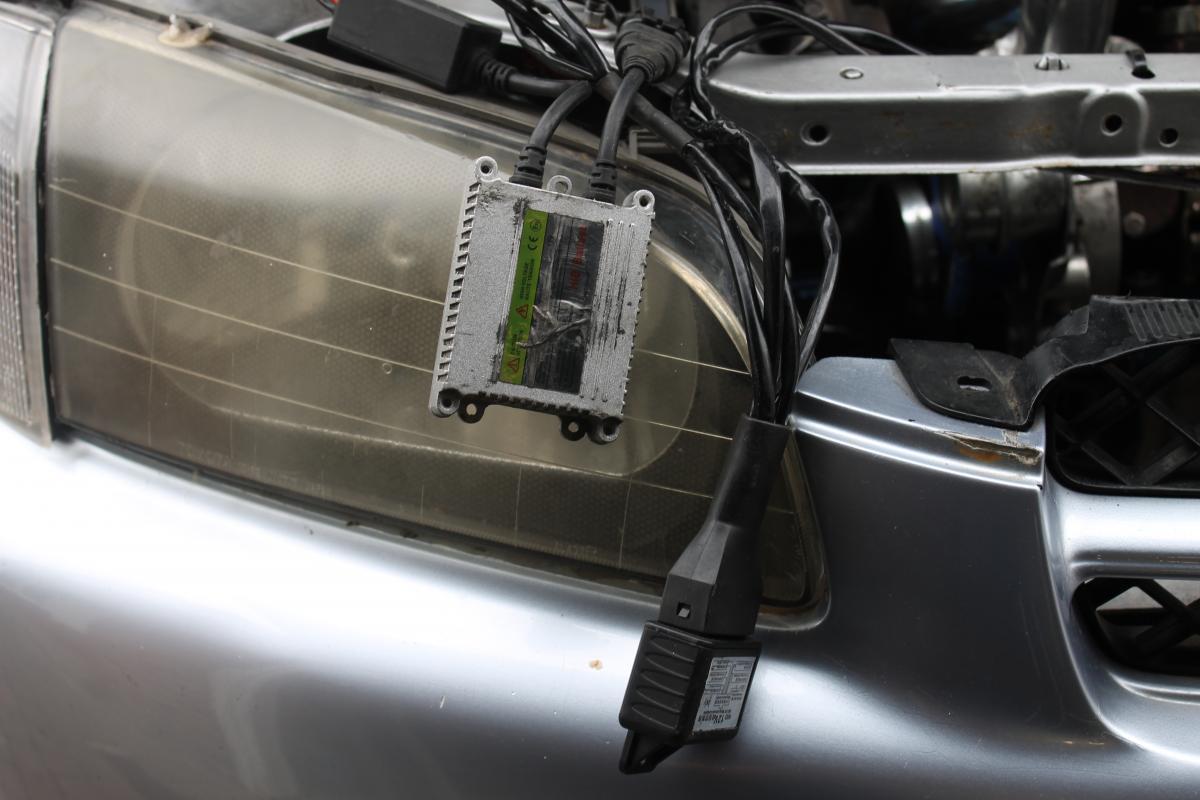

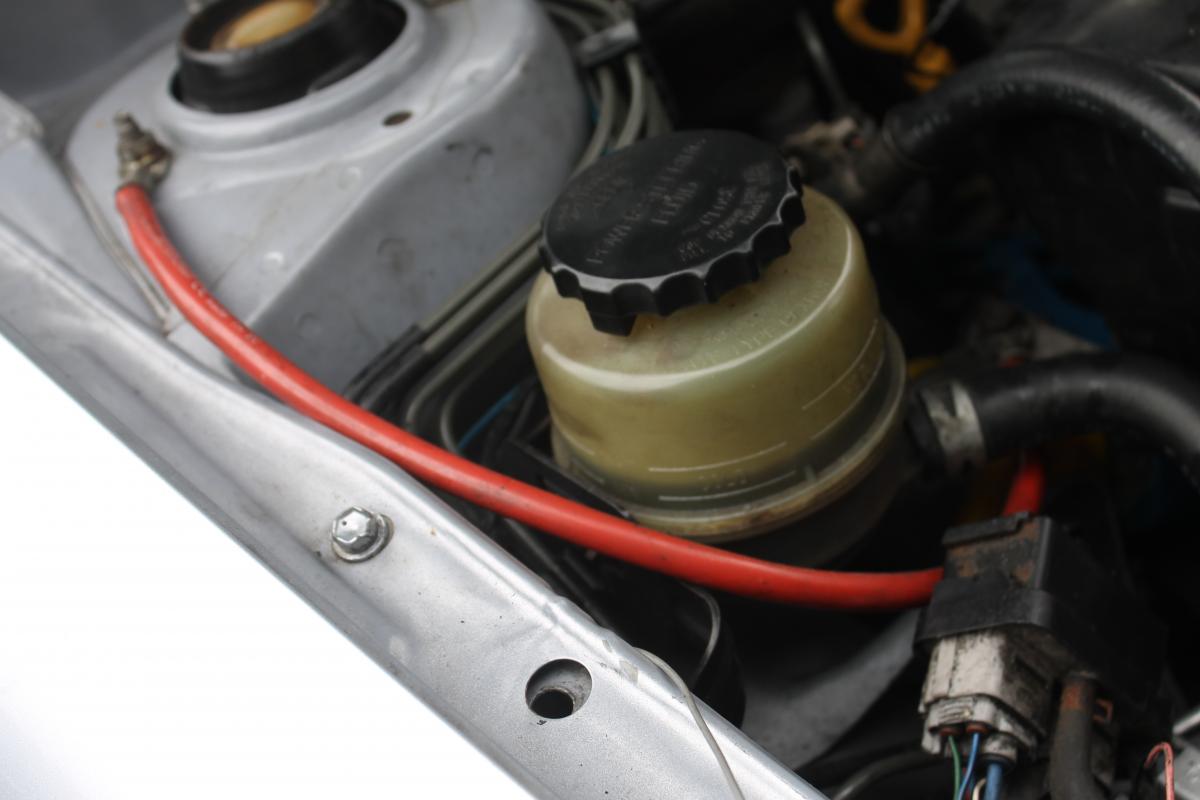

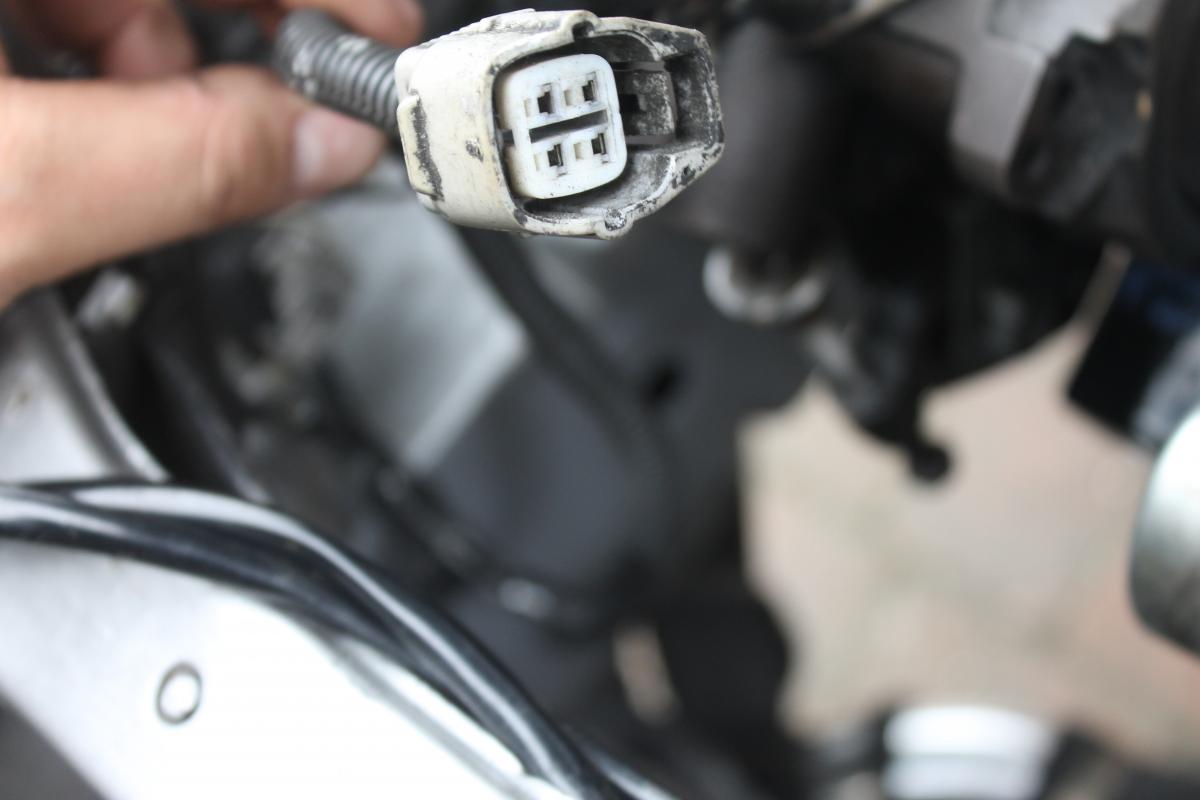

LewisSussex Posted September 10, 2016 Share Posted September 10, 2016 (edited) As it says in the title I need a bit of help with my wiring as its a mess. I want to wire tuck/tidy up my engine bay but firstly I need to start with the headlights as it looks a absolute mess. I've got a few pictures and need to know what's what and what I can get rid of. There is one picture that's nothing to do with electrics but what's the point in making a whole new thread for 1 picture. Also, I know what to do about moving the fuse box i.e tape up and number all the wires, move the fuse box to desired location and extend the wires. where are people running there wires through?. Perks of having a car the previous owner didn't look after right? lol Thanks to anyone who helps I really appreciate it O/S headlight wires/boxes? What is this connector and where is it meant to go? Where are these grounds meant to go? N/S wiring and HID ballast and what's that rubber thing lol What is this and can I get rid of this? Edited September 10, 2016 by LewisSussex Quote Link to post Share on other sites
richardc9052 Posted September 10, 2016 Share Posted September 10, 2016 fuse box behind glove box and run wires through the wing. depending one which starlet you have there may be a grommit you can pull out to get the wires back into the cabin through the passo side otherwise you will have to drill a hole. Quote Link to post Share on other sites
FMuscle Posted September 11, 2016 Share Posted September 11, 2016 Plug and play HID... urgh get rid of that shit.. I pulled everything out when I cleaned up mine 2 years ago, and removed all that wasn't used. Here's before and after shots. Quote Link to post Share on other sites
Bug679 Posted September 11, 2016 Share Posted September 11, 2016 That rubber thing looks like it goes inbetween your engine mount on drivers side 😬 Quote Link to post Share on other sites
LewisSussex Posted September 11, 2016 Author Share Posted September 11, 2016 Plug and play HID... urgh get rid of that shit.. I pulled everything out when I cleaned up mine 2 years ago, and removed all that wasn't used. Here's before and after shots. Quote Link to post Share on other sites
FMuscle Posted September 12, 2016 Share Posted September 12, 2016 I have no power steering, air con or abs, So I removed all that wasn't lights fan or horn... Quote Link to post Share on other sites
Essexglanza Posted December 27, 2016 Share Posted December 27, 2016 This is something I'd love to do but have no clue where to start haha, have no ABS and no aircon but have loads of plugs all over the place Quote Link to post Share on other sites
jellybaby Posted January 2, 2017 Share Posted January 2, 2017 This is something I'd love to do but have no clue where to start haha, have no ABS and no aircon but have loads of plugs all over the placeWhere u live???? I can do this for u as I done it on mine live in Colchester Quote Link to post Share on other sites
