rad fan blowing hot air on intake pipe cooling ideas


Recommended Posts

hi guys



anyone had this

after getting it mapped he said it seemed to be running a bit hot and seems to be due to the rad fan blowing hot air onto the intake pipe considering making a shield to deflect the air away

if anyones made anything be good to see


Link to post
Share on other sites

I guess it would of been done on throttle body temp reading



running 1- 1.1 bar of boost

not sure on the intercooler was on there when I bought it but pretty sure its to do with the fan blowing on the intake pipe that's making it hot

did use gold tape but we removed that and it was 5 degrees cooler ?


Link to post
Share on other sites

The thing is, without knowing the temp, we cant tell you if its high or not?

If you're using the stock IAT, its mounted in the intake manifold and gets affected by heatsoak badly. So if you did a run with tape, waited, then removed it, it may appear lower, but its because the sensor wouldn't have been as heat soaked.

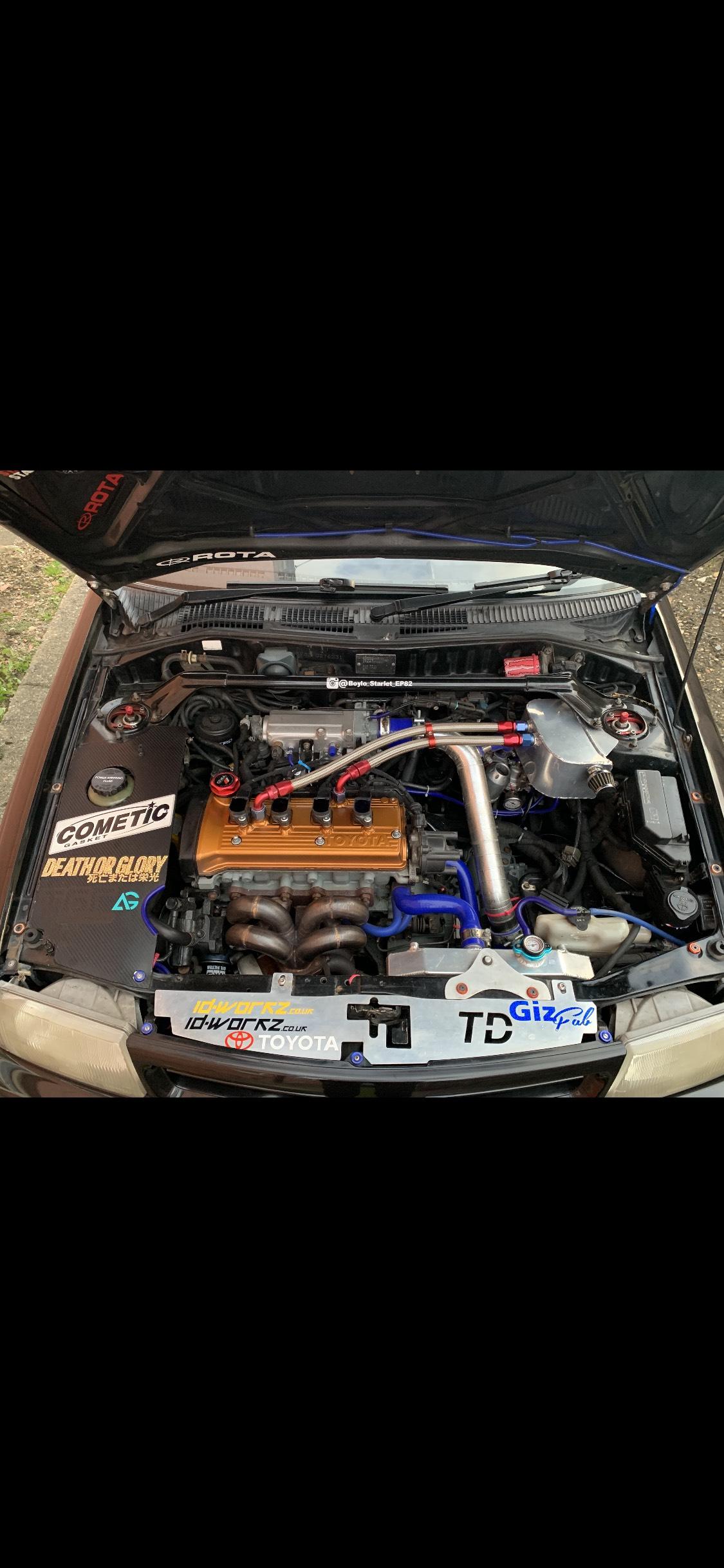

It looks like you're running COP ignition in your picture so its going to be on a standalone ecu; can you post the log?

Link to post
Share on other sites

il get the laptop plugged into it and get some accurate readings



yeah it does heat soak really badly its okay when your moving but if your stuck in traffic gets pretty hot



yeah im on COP with standalone link g4 so yeah il get a log going and get some data and then get it uploaded



Link to post
Share on other sites
28 minutes ago, Boylo99 said:

il get the laptop plugged into it and get some accurate readings



yeah it does heat soak really badly its okay when your moving but if your stuck in traffic gets pretty hot



yeah im on COP with standalone link g4 so yeah il get a log going and get some data and then get it uploaded



Best option, im happy to take a look.

Id recommend moving the IAT to just infront of the throttle body to the intercooler pipe if it isnt already.

This will reduce the heatsoak, and provide a more accurate reading.
