Ollieh17 Posted January 9, 2014 Share Posted January 9, 2014 (edited) As above need some advice! Edited January 13, 2014 by Ollieh17 Quote Link to post Share on other sites
TrisK Posted January 9, 2014 Share Posted January 9, 2014 what do you need to know? Quote Link to post Share on other sites
Ollieh17 Posted January 9, 2014 Author Share Posted January 9, 2014 1. Will my current short route intercooler pipe work as I understand you need to rotate the turbo? 2. I've heard the manifold etc may not fit with the standard efi pipe? 3. Is it a pretty simple/cheap job to have the screamer pipe unplumbed from the decat and welded up? Quote Link to post Share on other sites
Ollieh17 Posted January 9, 2014 Author Share Posted January 9, 2014 CT9 kit just to be clear! Quote Link to post Share on other sites
Starbuck Posted January 9, 2014 Share Posted January 9, 2014 1. You may need to adjust the short pipe a little to match the rotated turbo. 3. Speak to Dean RW he can advise. But its not that big a job. Quote Link to post Share on other sites
Ollieh17 Posted January 9, 2014 Author Share Posted January 9, 2014 Cool cheers mate Quote Link to post Share on other sites
asbo-v Posted January 11, 2014 Share Posted January 11, 2014 And a rad ? Quote Link to post Share on other sites
asbo-v Posted January 11, 2014 Share Posted January 11, 2014 And a rad ? Mine when straight on only modding was fmic as not top mount friendly and rad for a koyo one half size as stdard don't let you fit up leave the screemer as is Quote Link to post Share on other sites
Ollieh17 Posted January 12, 2014 Author Share Posted January 12, 2014 My screamer isn't plumbed into the decat so should be able to modify it to work with the standard rad Quote Link to post Share on other sites
Ollieh17 Posted January 13, 2014 Author Share Posted January 13, 2014 Did a search and didn't find much information on this. I understand I have to weld the internal wastegate in order to use the external one.Ideally i'd like to use a different method which meant i could resort back to stock setup. Seen in another thread you can buy special brackets like an actuator to hold it shut? Or could I just weld the wastegate control arm in place which would make the weld easier to break than the actual penny welded Quote Link to post Share on other sites
Zeldoz Posted January 13, 2014 Share Posted January 13, 2014 Did a search and didn't find much information on this. I understand I have to weld the internal wastegate in order to use the external one.Ideally i'd like to use a different method which meant i could resort back to stock setup. Seen in another thread you can buy special brackets like an actuator to hold it shut? Or could I just weld the wastegate control arm in place which would make the weld easier to break than the actual penny welded On my TD04 i believe the arms been welded to hold the gate. I have heard of a bracket like you mentioned! Quote Link to post Share on other sites
Ollieh17 Posted January 13, 2014 Author Share Posted January 13, 2014 got a pic of how its been welded? Quote Link to post Share on other sites
Zeldoz Posted January 13, 2014 Share Posted January 13, 2014 Check my thread, you may be able to see from when i took pictures before fitting it? Quote Link to post Share on other sites
TurboTobz Posted January 13, 2014 Share Posted January 13, 2014 If yoy wanna revert get the bracket can easily be sorced on google Quote Link to post Share on other sites
Ollieh17 Posted January 13, 2014 Author Share Posted January 13, 2014 might be more effort to use a bracket than just welding and replacing the turbo after. As with the wepr kit the turbo has to be rotated Quote Link to post Share on other sites
triple j Posted January 13, 2014 Share Posted January 13, 2014 What I did was put a tak weld on the waste gate arm where the actuator arm sits on, get someone to hold it in the shut position and put a nice tak on between the moving parts, then when u want to go actuator all u need to do is run the hacksaw through the weld, if u want I will show a picture of mine, it's tidy and works well no need for a bracket. Quote Link to post Share on other sites
Ollieh17 Posted January 13, 2014 Author Share Posted January 13, 2014 yeh picture would be great bud Quote Link to post Share on other sites

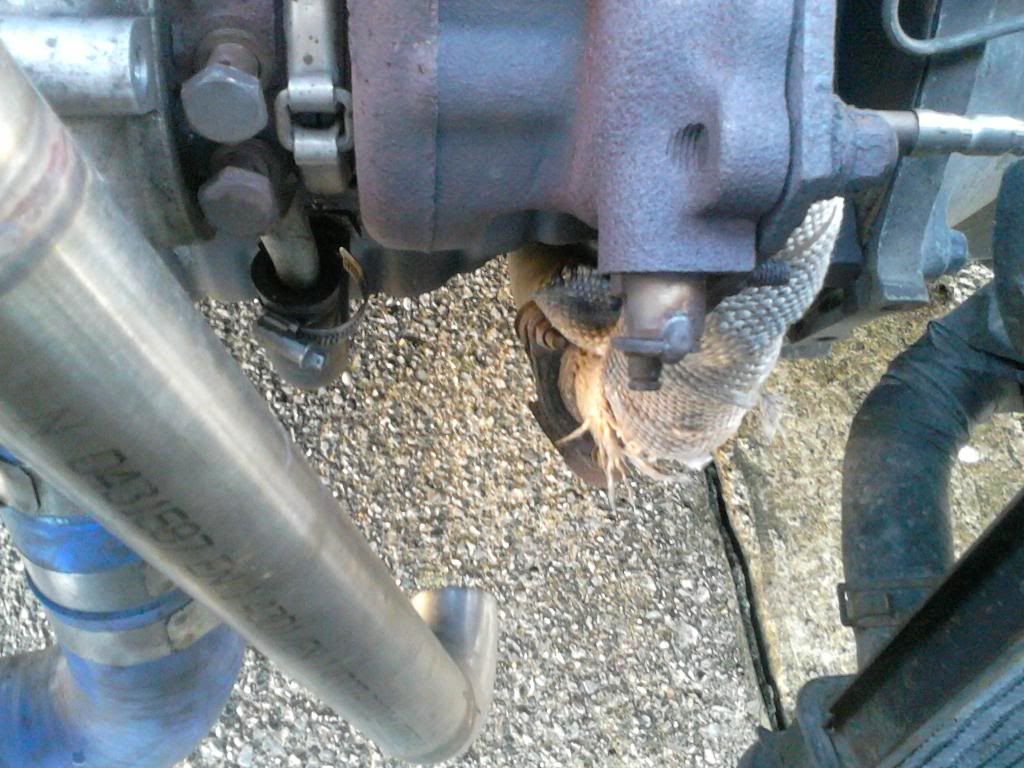

triple j Posted January 13, 2014 Share Posted January 13, 2014 http://i1229.photobucket.com/albums/ee475/pixievan/Mobile%20Uploads/DSC_0007_zpspe8uuu7g.jpg Quote Link to post Share on other sites
Ollieh17 Posted January 13, 2014 Author Share Posted January 13, 2014 cheers bud great help Quote Link to post Share on other sites
triple j Posted January 13, 2014 Share Posted January 13, 2014 No bother, it's a great way about it. Quote Link to post Share on other sites
