no i was just wondering how mine was on a 1bar original map sensor, purely just going off the fact it had a blue label. as ive explained in the previous posts its been checked and found to be running a 2bar sensor off common lexus and toyotas.

this is the direction of where my research is going with the 1bar map sensor and hks adjustable fcd. with me not able to test the system at present for peak voltage (fuel cut) as well as voltage raise against pressure both negative and positive, and the affects of the hks fcd on the voltage signal.

i cant find much online, there is the normal forum guess work and scare tactics, but no hard evidence, and the lads doing this work simply go under ground. they do not post there results which is a real shame.

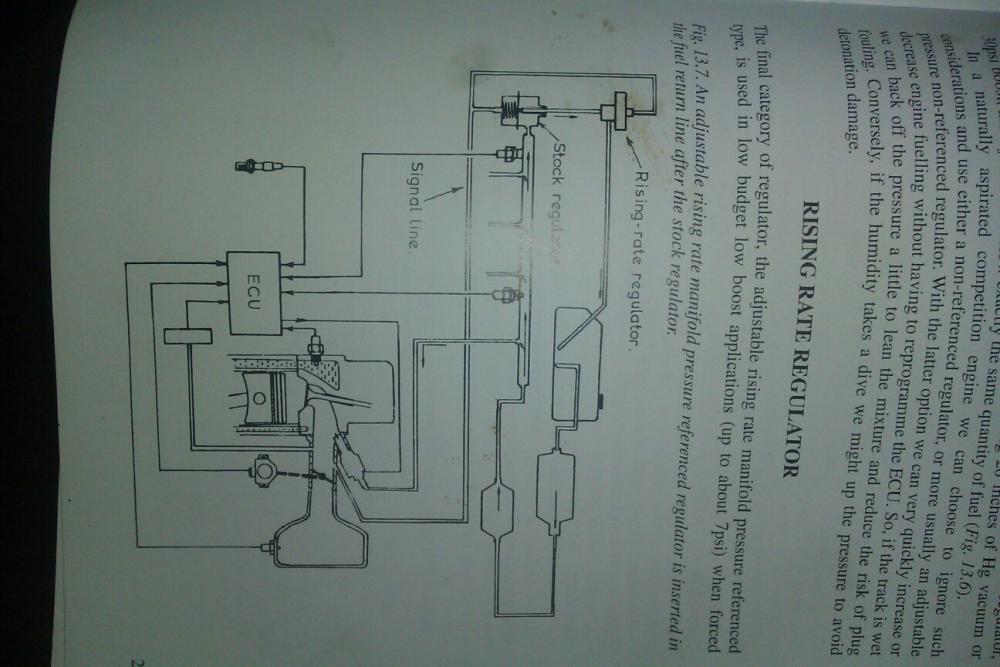

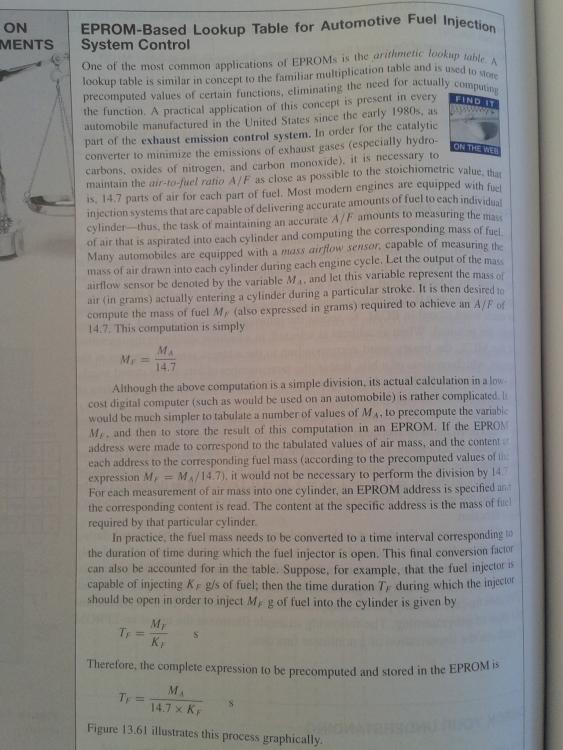

as ive tried to hone in on the fueling algorithm used (example in a previous post above) it becomes apparent that the fueling is doable using the larger injectors and adjustable fcd method. the map sensor will quickly drive the fueling rich upon boost, the throttle will apply more fueling as it opens at this point the fueling isnt fixed. the question here is does the map have an IDLE & WOT point on the TPS. answer is yes it does so if we make this adjustable we will loose either base idle or WOT. also can we affect/reduce the base map sensor voltage using the fcd if so happy days (bigger injectors are fitted). also we can now fit and use an adjustable raising rate fuel reg designed for this exact cocktail.

ive spoken with a few lads on here that have run this setup for years with no issue.

unfortunately they are quickly ridiculed and feel unwelcome on the forums.

people will now mention exact fueling, do we honestly think exact fueling is something we can achieve using simple piggyback.

Edited by Sam44
Link to post
Share on other sites
  • Replies 64
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

34 minutes ago, Sam44 said:

this is the direction of where my research is going with the 1bar map sensor and hks adjustable fcd. with me not able to test the system at present for peak voltage (fuel cut) as well as voltage raise against pressure both negative and positive, and the affects of the hks fcd on the voltage signal.

as ive tried to hone in on the fueling algorithm used (example in a previous post above) it becomes apparent that the fueling is doable using the larger injectors and adjustable fcd method. the map sensor will quickly drive the fueling rich upon boost, the throttle will apply more fueling as it opens at this point the fueling isnt fixed. the question here is does the map have an IDLE & WOT point on the TPS. answer is yes it does so if we make this adjustable we will loose either base idle or WOT. also can we affect/reduce the base map sensor voltage using the fcd if so happy days (bigger injectors are fitted). also we can now fit and use an adjustable raising rate fuel reg designed for this exact cocktail.

people will now mention exact fueling, do we honestly think exact fueling is something we can achieve using simple piggyback.

I've already said my opinion on this style of tuning on the other low boost thread. It seems at best to be a very old fashioned way of making something run at an OK level. Or get it wrong and .......

The modern piggy back is cheap, convenient and effective. It will have better fuelling control than the above method (nothing can be exact with a piggy back but it will be more accurate and easier to calibrate than mechanical tuning methods). It can also retard timing when necessary based on a table, something not addressed in your plan outlined above.

If cost is the deciding factor then don't forget even a cheap det 3 also has, boost control facility (so no separate EBC required) and datalogging etc.

Personally I don't think the results will justify the effort / risk vs piggy management. If your doing it as a technical exercise then enjoy. Look forward to the results / dyno graphs etc.

Link to post
Share on other sites

no technical exercise. these questions come about as i start to look at some of the components on the 4e and its relationship with the system in general also some of the more common fitted components and the affect they are having on the system.

if there is any 1 that wants to put up any info running the 4efe on the fcd/injector/fpr approach please feel free.

another is people not using the air temp sensor?. are thy unplugging it driving the ecu into a fail safe mode or just hanging it in the bay to read engine bay temps?

how much of an affect does this sensor have on fueling overall?.

you certainly have helped me clarify my thoughts on the adjustable type FCD. i just need to verify this with my scope.

ive been looking into the hks FCON control units recently. a seemingly smart control unit and quite user friendly, as well as being able to work on the original map sensor.

mpg helps analyse the overall tune both around town and motorway usage. both against the engine/turbo setup and map.

and like you said its mainly cost against proven power and safty. i would just like to throw efficiency in the mix to help people understand a good tune (overall setup) for speed and power balance.

a good thing here is if you have run a 4efe before it was turboed and how does it compare now.





Edited by Sam44
Link to post
Share on other sites
10 hours ago, Sam44 said:



i cant find much online, there is the normal forum guess work and scare tactics, but no hard evidence, and the lads doing this work simply go under ground. they do not post there results which is a real shame.

Isn’t this the case with so many of your findings we are still waiting to see? Still waiting on your coolant pressure data for one..

Link to post
Share on other sites

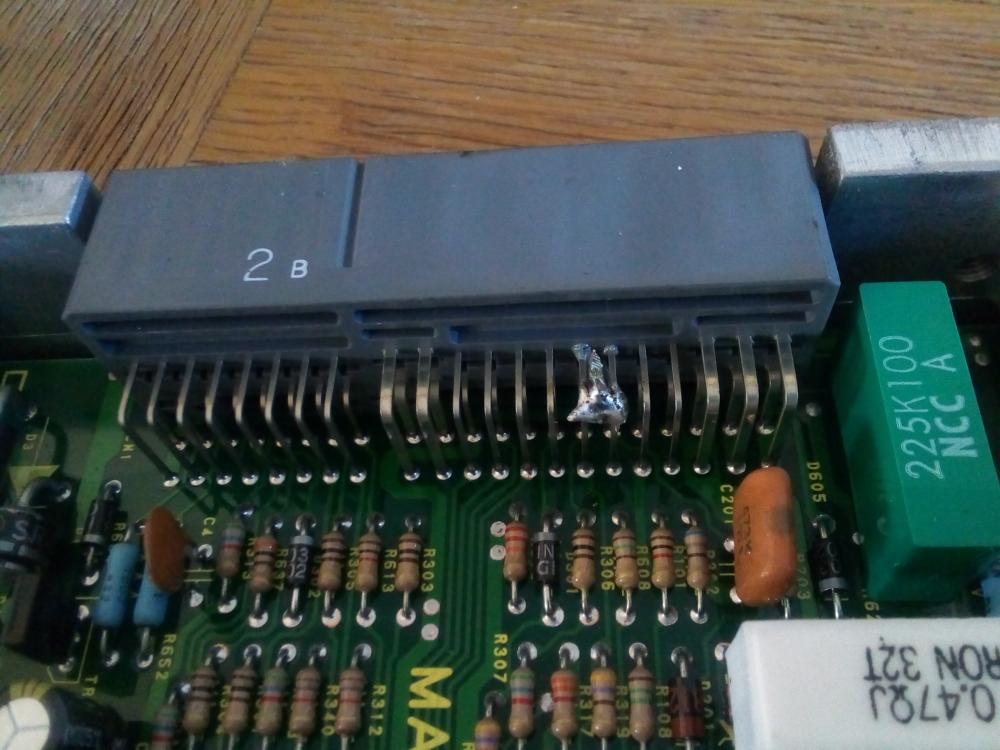

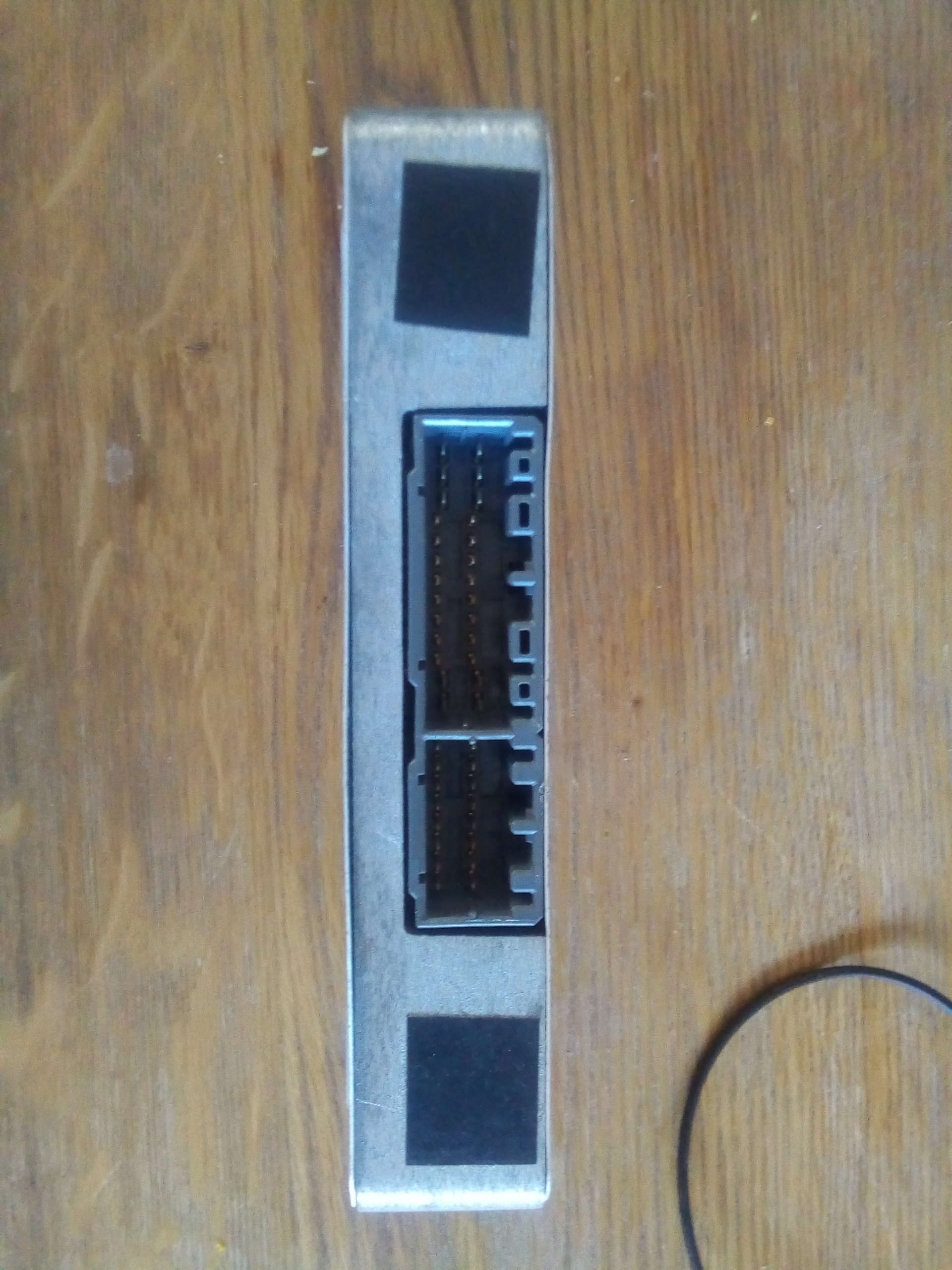

16128665070991388736993.thumb.jpg.154ccd7368706ad6736da496308613ef.jpgGen 1 4efe 88hp ae101 ecu.

Easier to work on the piggy back. Works with the bigger 4efte throttle body/position sensor (3way switch type).

The starlet ep91 plugs are the same and this also has no immobiliser. All that is needed is this mod on the internal pins.

I was hunting these pictures all last night to get up.

This ecu fueling algorithm is the same as the 4efte in both the ep82 & ep91?. Just different values in the equation (boost). The exception is the auto ecu on all models (advanced,great but of kit)

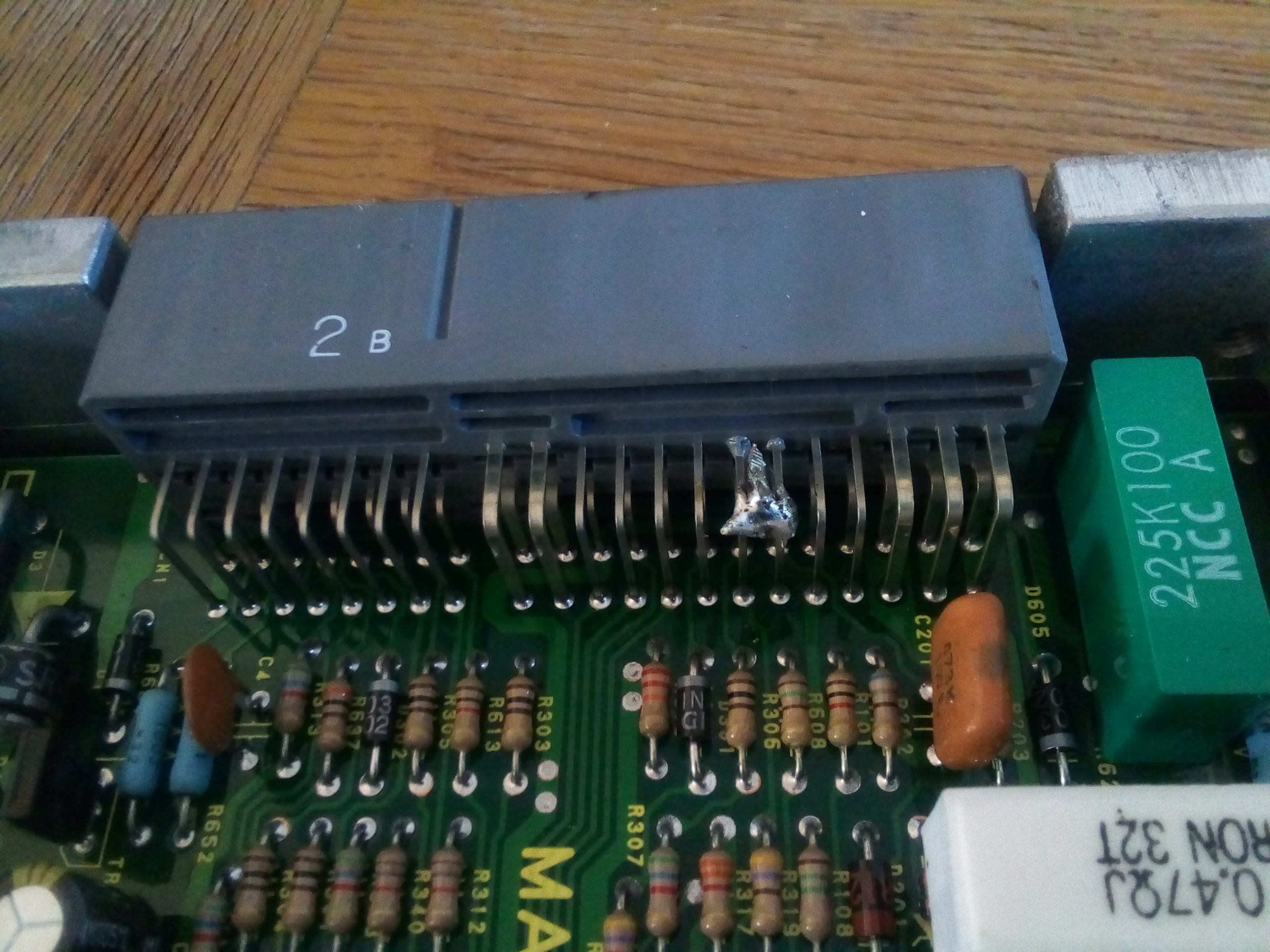

Slightly different pin configuration, soldering these 2 pins together brings it to life on the UK ep91 platform. the only other difference is the idle valve what i did was to leave the ep91 idle valve plug off and setup the idle using the idle screw located on the top of the 4efte throttle body.

The difference between the ae101 and ep91 4efe is reported to be around 10 to 15hp, but i suspect around 20ftlbs more torque output from the ae101 setup, (going off the lads that have run the 4efte power manifold and ae101 exhaust manifold on the ep91 4efe).

 I've learnt so far is the tps,inlet manifold (power 4efte) injectors 210cc light brown denso, exhaust manifold 4 to 2 to 1 short style (affecting mid rpm range torque)

The 4efe gen 1 original throttle size is around 35mm.






The ep82 has the same ecu plugs but a different dizzy setup it will not work on the UK ep91 unless a small adaptor loom is made from the ECU to the dizzy and ignition amp. Consists of around 5 to 6 wires.

How to setup either the 35mm ae101 throttle body or 4efte throttle body. You can also keep the waxstat idle up valve on the underside this helps with cold start idle up and also helps mpg by reducing air density, this does how ever reduce engine torque.



Edited by Sam44
Link to post
Share on other sites
4 hours ago, Sam44 said:

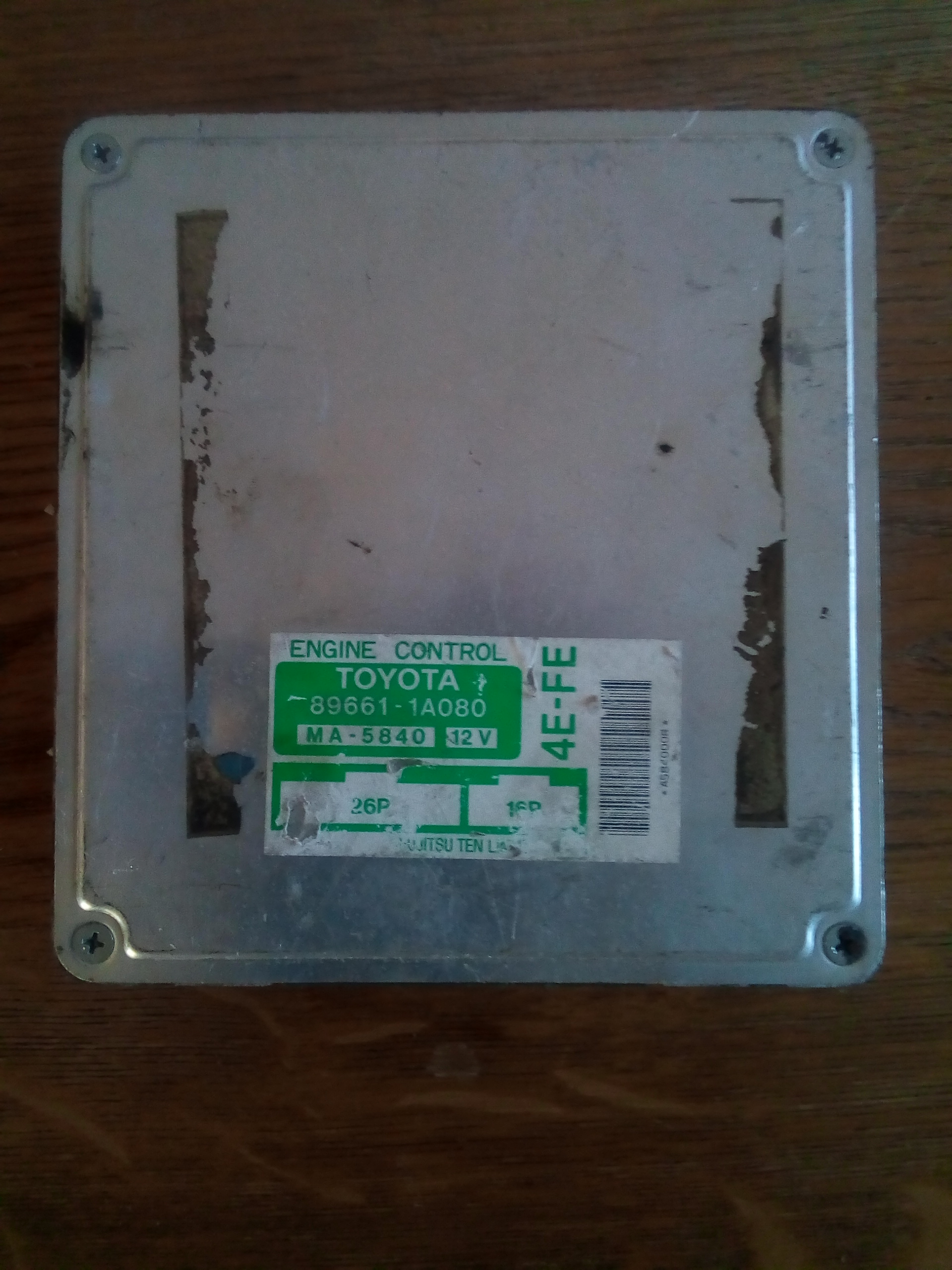

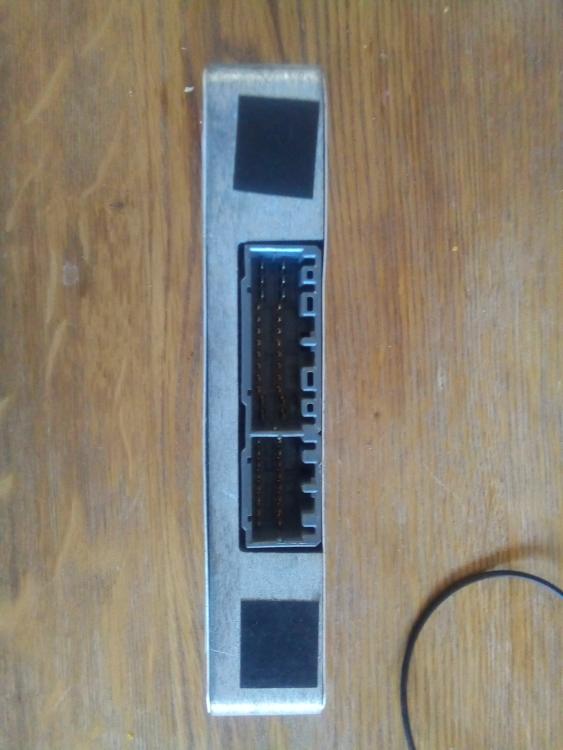

Gen 1 4efe 88hp ae101 ecu.

Easier to work on the piggy back. Works with the bigger 4efte throttle body/position sensor (3way switch type).

The starlet ep91 plugs are the same and this also has no immobiliser. All that is needed is this mod on the internal pins.

I was hunting these pictures all last night to get up.

This ecu fueling algorithm is the same as the 4efte in both the ep82 & ep91?. Just different values in the equation (boost). The exception is the auto ecu on all models (advanced,great but of kit)



Slightly different pin configuration, soldering these 2 pins together brings it to life on the UK ep91 platform. The difference between the ae101 and ep91 4efe is reported to be around 10 to 15hp, but i suspect around 20ftlbs more torque output from the ae101 setup, (going off the lads that have run the 4efte power manifold and ae101 exhaust manifold on the ep91 4efe).

 I've learnt so far is the tps,inlet manifold (power 4efte) injectors 210cc light brown denso, exhaust manifold 4 to 2 to 1 short style (affecting mid rpm range torque)

The 4efe gen 1 original throttle size is around 35mm.







The ep82 has the same ecu plugs but a different dizzy setup it will not work on the UK ep91 unless a small adaptor loom is made from the ECU to the dizzy and ignition amp. Consists of around 5 to 6 wires.

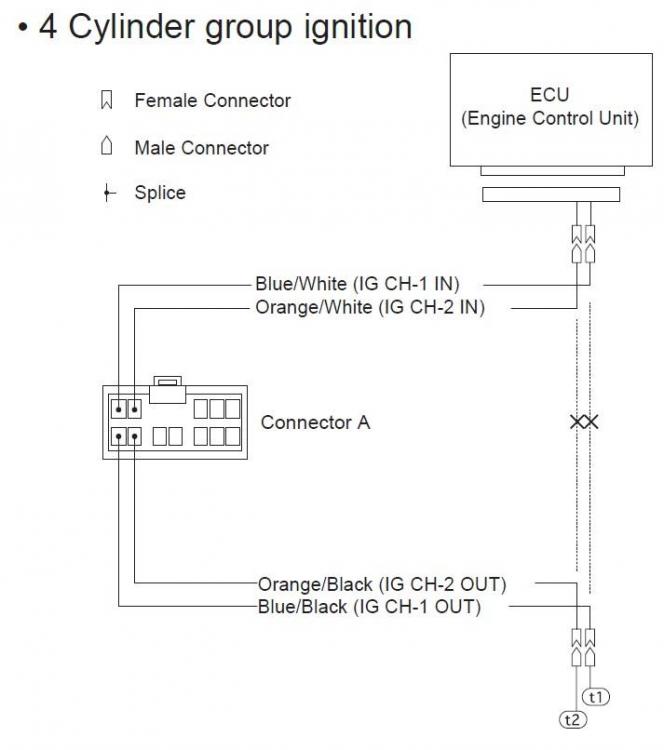

It looks like the B7 and B8 pins are now bridged, The IGF wire signal is now being sent to pins B7 and B8 on the ECU (ignition feed back from the B8 wire of the EP91 plug, B7 is empty on the EP91 plug).

Essentially you are taking the engine management back a generation. To get rid of the variable TPS on the EP91?

You'd need the 50mm fte TB (which you've already said in a previous post on a different thread will hurt drivability on an N/A+t.)

The ignition conversion loom you said about earlier.

There is also the IACV differences to deal with. The EP91 has the water heated electrically operate valve on the throttle body and afaik the gen 1's were the wax stat on TB and electronic valve separate on the manifold.

So for turboing an EP91 4efe you sacrifice low down drivability for an easier to tune ECU with a piggy back?

This thread is a bit all over the place now mate, N/A+t, N/A gen 1, piggy backs, rrfpr +FCD.

Best to try and stay on topic or what you are trying to get across can easily get lost.

I know Gavin on here has got a setup similar to this in his N/A which he's happy with.

Edited by Claymore
Link to post
Share on other sites

im not trying to do anything, only document what is possible.

this system is the same system for both the earlier ep80 gen 1 4efe and ep82/ep91 4efte have. why is this?.

this might also be interesting to lads seeking power from the N/A 4efe. or having immobilizer issues.

i have recently gone back to the uk ep91 4efe ecu after intercepting the tps signal after i was not happy with the amount of fuel i was having to add.

the earlier ecu is easier to map in if your a novice having a go with a simple piggyback like the det3. it also matches up to the ep80 setup in the 4efe+t common video on you tube.

as covered in other topics you can set up inlet systems and cams in many configurations to achieve your desired torque curve. the biggest way to alter the complete power graph.

you can get the 35mm ae101 gen1 throttle and the 4efte 45mm i think might be bigger both do very different things with the 4efte power manifold both fit. also on this subject the 4efte throttles do not fit the corolla tubular manifold, 5e, 4e manifolds they bolt on but overhand slightly needing a backing plate making the same happens with the ep91 uk 4efe if used on a 4efte power manifold.

i will edit the post above with how to setup the throttle body removing the 4efte and gen 1 4efe idle control valve. it has been covered recently on here also.

the subject is turboing a 4efe engine.  any and all welcome to join in and all information welcome. you can also message me if you like.



Edited by Sam44
Link to post
Share on other sites
1 hour ago, Sam44 said:

im not trying to do anything, only document what is possible.

this system is the same system for both the earlier ep80 gen 1 4efe and ep82/ep91 4efte have. why is this?.

this might also be interesting to lads seeking power from the N/A 4efe. or having immobilizer issues.

i have recently gone back to the uk ep91 4efe ecu after intercepting the tps signal after i was not happy with the amount of fuel i was having to add.

the earlier ecu is easier to map in if your a novice having a go with a simple piggyback like the det3. it also matches up to the ep80 setup in the 4efe+t common video on you tube.

as covered in other topics you can set up inlet systems and cams in many configurations to achieve your desired torque curve. the biggest way to alter the complete power graph.

you can get the 35mm ae101 gen1 throttle and the 4efte 45mm i think might be bigger both do very different things with the 4efte power manifold both fit. also on this subject the 4efte throttles do not fit the corolla tubular manifold, 5e, 4e manifolds they bolt on but overhand slightly needing a backing plate making the same happens with the ep91 uk 4efe if used on a 4efte power manifold.

i will edit the post above with how to setup the throttle body removing the 4efte and gen 1 4efe idle control valve. it has been covered recently on here also.

the subject is turboing a 4efe engine.  any and all welcome to join in and all information welcome. you can also message me if you like.



The reason I comment when I see posts like this is because you present these ideas as a "silver bullet" to fix a tuning problem (intentionally or not).

In the above example, sometimes the important downsides / negative effects are overlooked / forgotten or missing for what ever reason. It fixes one problem but causes 3 more and you only mentioned 1 of these.

For the less experienced reader, they are not presented with a balanced view / whole picture and may make decisions they regret.



Link to post
Share on other sites
11 hours ago, Sam44 said:

Rob I really don't mind you waiting.

Why don't you tell us how alternators work.

I was hoping for something constructive when I saw your name. Maybe next time.



I’ve clarified in the alternator topic for those that weren’t following.


Im not actually waiting for your data FYI, I have my own, I can post the X/Y plot now for coolant pressure on a high comp 4E for everyone to see; if you had it, you’d have posted it all the months ago when you were using your own “scare tactics” to other owners.


The thing that frustrates me is, I do post constructive points, with evidence and data to back up my claims.

Yourself however, do not; you post complete speculation that some unfortunate members will take as sound advice.

I find it even more frustrating where you’re still relatively new to the forum, and start moaning that people are posting “scare tactics” and not sharing their results, which is what the majority of your posts are; do what you like with your build, the way you want to, just don’t be a hypocrite.

Link to post
Share on other sites
On 2/9/2021 at 7:03 PM, Claymore said:

The reason I comment when I see posts like this is because you present these ideas as a "silver bullet" to fix a tuning problem (intentionally or not).

In the above example, sometimes the important downsides / negative effects are overlooked / forgotten or missing for what ever reason. It fixes one problem but causes 3 more and you only mentioned 1 of these.

For the less experienced reader, they are not presented with a balanced view / whole picture and may make decisions they regret.



It's just a process I find my self going threw as problems present them self's to me, these normally match up with other questions I have like "why is the more modern ep91 4efte control unit the same as the early gen1 4efe"?. Also pointing out the difference of the EP,804efe video and ep91 UK 4efe you have put up seeming matching the 2x systems as the same. There not. Also it's much easier to map in the earlier type system on something like a det3 low table resolution.

I really do enjoy our conversations on here because my thoughts are verified most of the time, as well as giving me more to act on with new ideas. Thanks for the input, it's very constructive.

Were as Rob comes on and provides this kind of crap. In the above post. Which I'm really not interested in.



Edited by Sam44
Link to post
Share on other sites
6 minutes ago, Sam44 said:

Were as Rob comes on and provides this kind of crap. In the above post. Which I'm really not interested in.



I’m all for constructive debates and conversations, but it seems you’ve got annoyed that I’ve just said it how it appears; as have some other members, but there we go.

We can leave it at that and you can continue down your unique development path



Link to post
Share on other sites
On 2/10/2021 at 9:20 PM, Sam44 said:

Also pointing out the difference of the EP,804efe video and ep91 UK 4efe you have put up seeming matching the 2x systems as the same............



I really do enjoy our conversations on here because my thoughts are verified most of the time, as well as giving me more to act on with new ideas. Thanks for the input, it's very constructive.

The reason for linking the videos of the det 3 install on the EP8? was to show the installation / settings and tuning of the piggyback nothing more. They are the most detailed videos available and were a great help to me getting to were I am and the information was well presented and accurate. At no point did I say the engine had the same management system as the EP91. If there were videos of this setup on the EP91 I would have used them instead, sadly there are not.

I see that you have linked the same videos at the beginning of your build thread, so by your definition and behaviour this means you also think the 82 and 91 have the same management? More hypocrite behaviour?

I'm glad that the input is helpful, its never my intention to end up in an argument, its purely a discussion around the information that is presented.

Edited by Claymore
Link to post
Share on other sites

Yep it's good to be apart of a club were capable like minded people can discuss things. Gets right to the nitty gritty bits.

And yep I know I'm just pointing out what I came across and to point it out. As well as ask the questions that are on my mind about people's setups and Toyota systems threw the ages. Always a pleasure to discuss these with you. I try not to read or use emotion in my posts, as honestly what's the point the only person getting wound up is the person doing this.

Just on the ep91 UK 4efe system the fuel algorithm using the tps is very much suited for n/a application.

Edited by Sam44
Link to post
Share on other sites
On 2/9/2021 at 8:01 PM, RobSR said:

I’ve clarified in the alternator topic for those that weren’t following.


Im not actually waiting for your data FYI, I have my own, I can post the X/Y plot now for coolant pressure on a high comp 4E for everyone to see; if you had it, you’d have posted it all the months ago when you were using your own “scare tactics” to other owners.


The thing that frustrates me is, I do post constructive points, with evidence and data to back up my claims.

Yourself however, do not; you post complete speculation that some unfortunate members will take as sound advice.

I find it even more frustrating where you’re still relatively new to the forum, and start moaning that people are posting “scare tactics” and not sharing their results, which is what the majority of your posts are; do what you like with your build, the way you want to, just don’t be a hypocrite.

How can I of posted it months ago the data is at my home in the UK, I'm in North America with work. As I've said many times. I'm so glad you have your own. Saves this conversation happening, figures crossed.



Edited by Sam44
