Okay it's about time I made a progress blog!



When I was 14 I bought myself a starlet sportif with the idea of doing a project with my old man so it was ready for when I was old enough to drive on the road, during that time I made myself very familiar with starlets and had actually been lerking around the forums back in the UKSC days, however the project had to be abandoned. Once I got my car licence there was only 1 car for me, a starlet, but this time I was determined to have something more special than a granny spec sportif, and as a Glanza was out the question due to insurance, there was only one option. A starlet SR!

I have actually owned 2 previous black SR's before this one, and I absolutely love them, so when the opportunity came to buy a immaculate SR from Jase (Pikey009) I just had to have it! I arranged with Jase and took a ride over on the Kawasaki ZX6R to view it, and I was pleasently pleased to have met someone with the same level of care and similar ideologies of cars as I do. Anyone that has met Jase he's a great guy (he even delivered the car to my house well over an hour away!) and has a lovely family and we have kept in touch since.



His thread can be found here: http://www.ukstarletowners.com/topic/97185-black-sr/

Rest assured, this will not be Glanza repped nor be turbo'd. Changes and modifications will be made, however it will be kept as close to original as much as possible, or at least look original to the untrained eye. The idea of the SR (to me at least) is its a bit of a nod towards toyota's rally heritage, and in a way is a bit of a holomagation, so any changes will be in that direction and how I think the SR should have left the factory. Call it an SR special if you will lol






When Jase dropped off the car, I almost immediately started fitting parts that I had accumulated and removed off previous starlets I had owned. The car already came with:

-Original TTE tailpipe on custom stainless backbox

-Corolla Inlet manifold

-Refurb'd TRD front strut brace

-Cusco rear strut brace

-Apexi springs

-Eibach camber bolts

-Levin twin pot conversion

-Optional genuine TTE front splitter

-Optional genuine front fogs

-Genuine crystal headlights

-Wing mirrors body colour coded

-Custom one off Starlet SR plaque

-98 Glanza front and rear seats

-98 Glanza black steering wheel

-98 Glanza door cards

-Full 98 Glanza plastics

-Optional 5 piece luxury mats

-TRD gear knob

-Custom made from scratch lowered seat frames

-Glanza cup holders

-Optional audio upgrade with original CD head unit

-Aluminium dial cluster surround



And after literally a few hours of taking ownership it I fitted it with the following bit I lifted from my old SR:

- Optional Recaro interior

- C's short shifter

- TRD gear gaiter (non genuine but I like it)

- '98 spec indicators

- Red LEDs in dials, heater controls, Window switch, even a modified clock to light up red

- New single din pioneer radio w/BT + mic, DAB, CD, AUX and USB

- Black boot carpet to match Recaro seats

- Vibe 8" shallow sub mounted to back of rear seat

- LED tail & brake light bulbs



0118553a8d277204e1a1f64d9f1ac6b7.jpg7f803887b5cf70264e4e27d3cb3b22e4.jpg526c4be7f5675eb87e1d80548dfaf9c3.jpgf71f6ec90affd83aa1209bdf59db4c5a.jpg99e0c3f226d7452a6169e3599782806f.jpg



Had to remove the Cusco rear strut brace to make way for the sub, I only wanted a small one, just wanted to have better quality music not piss off the town or lose my boot space





14/10/2016 - the worst day of my life.

At around 8pm I was driving a friends Glanza and we had a major accident and hit a tree on a duel carriage way at 60mph (70 zone). Unfortunately, my friend Shahid lost his life at the scene and we were trapped in the car for 2 hours and I was in critical condition and had severe leg Injuries. I'm lucky to be alive and after 4 months I am just about able to walk but have to live with what happened for the rest of my life, as well as 3 titanium rods in my legs, plates in my arm. I won't go into too much detail in this thread, because its a mess and not what you came here for.

This incident is still on going and the police are trying to charge me with causing death by dangerous driving and causing death while uninsured (which is utter crap), it's easy for myself to say that I wasn't to blame and point fingers, but there is a fair bit of evidence to suggest that I wasn't the cause which the police have totally ignored due to their dogmatic conduct because of my previous behavior on a totally separate issue while on my motor bike. However at the end of the day, no one set out to cause what happened and many of us have lost a good friend, a son, a brother, cousin, car enthusiast and a fellow Starlet owner.

I have to live with this everyday and now I have to put up with all the shitty comments from shit stirrers and gullible but stubborn sheep who love jumping to conclusions even though they don't know fuck all about the situation, what happened, who else was involved or consider what me and his family have had to go through.

Those that know me, know I'm not a bad or horrible person, and I just hope that this fantastic community is the one place I wont find the same treatment.

Im truly thankful to the paramedics, fire crews, air ambulance and the NHS for saving my life, enabling me to keep the use of my legs and doing what they could for Shahid.

What happened has scared me physically and mentally for the rest of my days and everyday is difficult, depression has set in once again in my life, and to be honest the only thing keeping me going is working on my Starlet to the best of my current physical abilities. I miss my friend Shahid Moghal every day, he was truly an absolutely great guy and I am pleased to have known him. I have spent tears over him and I wish he was still with us.










Rest In Peace Shahid Moghal

02/10/1994 - 14/10/2016





6 months on from the crash, I started to get back to work on the starlet.

As I had been sitting in a bed for months, there is only soo much Netflix that I can watch and

the boredom got soo bad, I had to do something.



So I started cracking on with wiring up the Footwell & ignition lights. I had managed to fit the footwell lights without much problem, apart from the wiring jungle and my obsession with soldering everything and keeping everything tidy and looking as OEM as pos, it took a while.

However the ignition barrel light was a bitch, as N/A's have immobilisers, the plastic ring doesn't fit, and I tried to make it fit but kinda ended up ruining it :crazy: I was determined to have an ignition barrel light but naturally I didn't want to give up the immobiliser. So I made my own!

I had to get a clear plastic tube, bore it out to the right size to fit around the immobiliser, then I wired up 3 tiny LEDs and glued them round the sides, then added a few resistors as it was a bit bright, but this is what I ended up with!








Then I had to bore out the black Glanza shroud i bought to fit the new ignition barrel light






Sweet as!



After, I bought some new pioneer speakers for the front and back, and I have made them fit nicely in the original grills.



One day at work a while back I was doing some work on an old avensis, and I noticed that the light stalk looked very similar to the one in my starlet, except it had an additional switch for the front and rear fog lights.

This got me thinking.. Will it fit?

So seeing as I have a lot of time off work while recovering from my injuries, I bought a stalk from an avensis and compared it to the indicator stalk from my starlet.

Did it fit? Of course not. But me being me, I made it fit!






The next problem was wiring, the front fog lights were easy, as the existing wiring was a relatively simple wiring setup.

The rear fog light though... Well, that wasn't soo easy!

The rear fog light switch was too complex for me to understand and grasp at the time, but if you remove the rear fog switch the headlights won't work at all, tried bridging connections but after many fuses later I came to the conclusion that the circuit board inside the switch was needed.

Thing is with all my medication I'm currently on it has really effected my concentration, but finally after a few hours of staring at the circuit board I figured out roughly how it works. I removed the relay from the circuit board and put some wires in its place and ran those to my own relay I added (to the right on the other side of the dials) which would connect to the light stalk and back to the circuit board to function as normal






And finally we have a full functioning light stalk with switches for front and rear fog lights!

I also done the wiper mod while I was there that lukEp made a good write up about in the tutorial section (HERE) that make the front wipers wipe when you spray the windscreen rather than wiping manually








Problem is now I have 2 empty slots where the switches were.

I am looking to buy one of those air purifiers that go on the parcel shelf as the switch for it will fit in one of the empty slots and probably get some Glanza electric mirrors and put that switch in place of the other.



Next!

Since I fitted LEDs behind the dials, the dimmer switch (that's designed for incandescent bulbs) only dims LEDs the most tiniest bit, this bugged me massively. I just didn't see the point of having a switch that does nothing. Yeah I could have just bypass & removed it but where would the fun be in that!

So I bought a PWM controller that adjusts electric motor speeds but also acts as a dimmer switch for LEDs




Thing is the controller won't just fit in its place. It's too small, plus if you turn it down far enough the LEDs switch off, and I didn't want that plus I liked that the original dimmer had notches and wanted to use the original knob.

So to over come this I cut the back off the original dimmer and after fucking about with the dremel for ages I adapted the two to fit together




Then I added some extra notches inside the newly modified dimmer switch to give a slightly wider range of adjustability






I had to bypass the wires for the original dimmer and tapped in directly to the positive and negative on the back of the cluster.

The good thing about this is that if the new circuit board on the back part of the switch happened to fail or break, it can be completely disassembled to replace the circuit board Rather than build a new switch totally from scratch, or it can be bypassed at the plug I put in




And now the dimmer works as it should with LEDs!






To be fair, the lights seem brighter in general in pictures than they actually are.

While I had the dials out I thought I'd add a little something special. I had some stickers made to put inside the cluster



Although Jase (the previous owner) doesn't approve lol








Had a little issue with the short shifter on my last starlet, if you had the cup holders out, the stick would hit the cup holder and nearly make your Fanta no ice from McDonald's explode all over the centre console, so I bent it back to where it only just taps the cup holder now which is better.



Then I bought a nice TRD gear knob from sosolid, which is different type from the one I already had fitted




Now for something different...

Before my crash I made a trip up to Birmingham to pick up a complete 5EFHE and it had been sitting in my shed ever since No no, I'm not doing an engine swap. The plan: It will remain 1.3L, but it will be a high compression build.

The target.. 130bhp

I have read all the comments where others in the past have asked how to tune an N/A and people say that it's not worth it for the gains, just throw a 4EFTE in there, but look, I know and I don't care, I wanna be different and I want to build this car how I feel an SR should have left the factory.

That means that as many Toyota parts will be used for tuning where possible, I.E 5EFHE cams, Corolla manifold etc.

My reasoning behind wanting to stay N/A, apart from wanting to be different lol, some of you are aware of the EP82 Gi that was a 1.3L N/A with 100bhp (of which I have an ECU from one).

Now considering a standard GT or Glanza puts out 136bhp, how much will it take to get a extra 30bhp and have turbo power without the turbo?

It will take a lot to get the ECU working but lately I have been considering either a Emanage or a Megasquirt v3 (although it won't support an immobiliser that I would like to retain). I have already bought stronger con rods from a GT, a 4EFTE flywheel for larger clutch, 5EFE 0.5 head gasket plus an entire 5EFHE to steal bits off

So I thought that it might be a good idea to take the time to do some engine work, took a lot of effort, especially in my wounded state so I had a double dose of morphine, and after having to drilling out one of the cylinder head bolts (which are hardened steel...) with a tungsten drill bit, I managed to remove the cylinder head




Measured the valve clearances and shims






Then I went and chucked all of it into a tub of engine cleaner, and a few hours later a steam clean in the back garden at 4AM (the neighbours love me lol)

End result looked like this






Then over the next few weeks, on and off, I polished up the cams slightly and coated them in oil, and I used the dremel to grind away any rough casting marks or sharp edges that could potentially break off in the area around the camshafts, probably didn't need to be done but done it anyway






Followed by a shit load of dremeling around inside the runners in the cylinder head, I went from this






To this











Exhaust ports mirror finished







And the chambers







And polished up the valve faces and backs but left rough on the backs of the inlets








I'm yet to finish up one last cylinder and check if a valve job is required or if I can get away with just lapping them in. I haven't ported it as such because it's just unnecessary, it was more or less just smoothing it out

Sort of having a break from finishing the cylinder head while I get my personal shit together, however I did fit some Optional Starlet door sills, only done the passenger side for now but will do the drivers soon, but what a bastard to stick down!






I was thinking the other day if I got a Emanage/Megasquirt ecu then what about a sport/power mode button?

Was searching eBay for genuine Toyota switches & buttons, but with no luck I stumbled across a switch from an old Jaguar which looked perfect. So I bought it to see where it could go and if it will fit anywhere.

Haven't actually fitted it, just a test fit. Fits almost perfectly








3/7/17

Realised I probably could have put the dates of the updates but oh well, we're here now lol

Been continuing with the cylinder head, finishing up the polishing and reshimming the valves with new shims






5/7/17

Today I have FINALLY finished all the polishing and just need to lap in 6 more intake valves and it will be off to be skimmed.

As for how much though I'm not too sure, bearing in mind this will be a high compression 4EFE and I already have a 0.5mm 5EFE head gasket, so I was feeling having it skimmed 0.3mm or less maybe?? Not sure, I'm not sure what the piston to valve clearances are, I will have a chat with the engineers and see what they suggest. But for now here's the pics as of now





Then I had these delivered, should be more fun trying to wire up and make functional lol will obviously have to be painted before fitting






13/7/17

Just got the head back from being skimmed, so clean!







I had the head skimmed by 0.15mm (6 thou), combined with the 0.5mm 5EFE gasket should provide a nice compression increase, still need to find out which pistons have higher compression, 5EFHE or 4EFE?

But until then I will just put all the valves back in, waiting for some stainless steel fasteners to replace the zinc coated ones and then it will sit there until I build the bottom half (that I don't quite yet have to hand because its in the car lol)



I also spent the last few days making a wiring loom and wiring up the electric mirrors and with much help from Morgey I got them working!






Now I am in the process of having the mirrors painted to match the car, and I also need the blank mirror trims for the interior

also, I have now had the registration transferred over from my old SR 'S85 RKE' to the new one. Why? Dunno lol I just prefer them



19/7/17

Special thanks to Morgey, he had some mirror trims which I bought off him and he's been extremely helpful! Still waiting for the mirrors to be painted, but a mate of mine is doing it for me and I'm not in a terrible rush - can't physically drive the car at the moment anyway lol



Been doing yet even more bloody wiring, started getting everything in place ready to fit a 2 into 1 alarm system






Still haven't got round to putting the valves back in yet, but I've replaced the fasteners with stainless ones, exhaust studs, Inlet studs, thermostat housing studs and all stainless locking nuts



6c5e8b950fdfb1be985a93b9c8b145ce.jpg789ded81f1cb554ca7605a0b2ed75bac.jpg17538e0fa781fe67db81749cf1c1681c.jpg





27/7/17

Been fiddling about the last few days wiring up the alarm, and it's all wired up and works as it should just need to tidy up the wires under the dash and put it back together






Today I've been doing some grinding/sanding on the 5EFHE valve cover and the fuel rail, smoothing them out ready for powder coating at a later date






The last two days I have been trying to ask people if they know anyone that has a garage that I could rent (with help from my family) to put my car in and work on inside, but with no luck. Bummer

So I saw an ad in the friday-ad with a guy who is also looking for a place to work on his car, so I gave him a call and offered to go halves which he said sounds good so, we will be looking at a unit tomorrow



28/07/17

Went to check out the unit today, looks okay, just enough room to get 2 cars in there, so can crack on with the rest of my engine soon



Finally sat my arse down to put the valves back in






Also finished all the wiring, the 2 into 1 alarm is now fully working, tidied up all the wiring, everything has been soldered, used good quality loom tape that manufacturers use so it's not totally obvious is been messed with






And also bought some Optional headlight covers 😁



2/8/17

Got the covers today






There not bad but to be fair they have seen better days






They have a few minor scuffs and micro scratches, but I will Polish them and restore them as best as I can!

One does have a crack in it but isn't much I can do about that unfortunately :unknw:

And I replaced most of the fuses for LED 'glow' fuses, might as well so if any fuses blow in the future i'll know which one



Edited by Trevstar
Link to post
Share on other sites
  • Replies 146
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Posted Images

Thats class. Very tidy bud!

Also, genuinely the first set of the OEM front fogs that I have seen outside of the options brochures!!! Superb!!!!!!!! nice to see they do exist!

Phil.

Thanks Phil!

Definitely fitted by Toyota, it's all their wiring

you see the grannies admiring the beast in the first picture (says it all)

Top qaulity motor, good luck with it

Haha! Cheers buddy

I like that TTE sticker, I thought it was a genuine OEM Rare dash clock, looks good.

Precisely the look I was going for!

Edited by Trevstar
Link to post
Share on other sites
  • 3 weeks later...
  • 4 weeks later...

6/8/17

Cylinder head is done, ready to be bolted up



5b3835acb97d3a0a73a1b9387e8dc9b7.jpgb5307d0496d35b20c9b8b35b42e1a3ab.jpga37d694d6d8126537bfb6930eaafb343.jpg158e090dd32e0c1da93e35e045ee9e81.jpge78843758311659120d2b775240a21a9.jpg



Just waiting for my unit to be ready so I move my old starlet that is currently sitting at my work, so I can get it out their way while I'm off work and I can get a start on removing the engine from that, rebuild it and swap it, OR just remove the engine from my current one and rebuild that. Depends on my situation






The old SR. Poor thing just sitting there :(



10/8/17

Now the cylinder head is done, I'm planning to tackle something much harder lol, along with the 5EFHE engine I had in my shed, I also had this C52 GT turbo gearbox that I picked up last Christmas eve. It's supposed to be fitted with a TRD LSD, but I don't know what type




So what I want to do is take it apart to see what type it is, if it's mechanical then fantastic! If it's a clutch type then I may have to think about keeping it or not, don't really want one requiring any special type of maintenance.



Then while it's apart I will inspect/check out the synchros and bearings, see what their like, maybe replace them,  but from what I understand, this would be a very expensive move.

[EDIT: the synchros actually seem to be reasonably priced, its the bearings that cost a fair bit]



And finished restoring one of the headlight covers (one on the right, as if you couldn't tell)



d8ce7a147023bafae63a1af1d935e668.jpgc993baafd685db8c91890ed7ec10221c.jpgfb84182fd2144802f66a20ef83c47e53.jpg



15/8/17

Got this the other day for the front grill






It's a EP95 front badge but as you can see, just like the headlight covers, it's seen better days so I will do what I can to restore it and find a way to attach it, because the ep95 has a part on the bumper for it to clip in to.



Managed to remove the front off the badge, I used a bit of scotchbrite to remove the loose paint on the back that was making it look like it had an infection or something, and I will repaint the back white or silver and the front with some matt black on the area where the black paint has come off from stone chips, stick it back together and make some sort of bracket to mount it






23/8/17

Got the mirror covers back today, forgot my friend was on holiday hence why it took so long but I wasnt in a rush anyway.

I reassembled them and replaced the rusty bolts with stainless steel ones (there's a pattern emerging here with stainless isn't there? haha), ignore the greasy finger print marks in the pictures



f17a0b159080259c5d1fb9c680cf232f.jpgd09f3f0e75ed353a5501462b32795325.jpg83f09973b1aa294fda1d49baf63aa815.jpgc1b93d3ee067ce4392d8fb8972da6d08.jpg



I am very pleased them and really happy I now have electric folding mirrors! I think they look better than the manual ones and I believe they are even a bit wider than the originals.

After I was done with that, I drew my attention to the starlet grill badge. Waiting on some paint to referb it, but I was trying to figure out how to attach it without the clips molded into the bumper on the EP95.



So I bought a small sheet of aluminium and made up this rather crude bracket



242e6aad96561c5274940564a2874b2f.jpgbac5cbb6214252badf522e79b7ffca96.jpg0edfec5c3fadbef6135742d2125e5a85.jpg



It was a trial and error type of scenario but it works very well, keeps it in place and doesn't wobble about. It doesn't look all that tidy, however you won't even see it when fitted so I'm fine with it as it is



25/08/2017

Picked up this from toyota today to plug up the hole I had left where the old rear fog light switch was. Gave up on the air purifier.

I put the part number in the pic so if anyone wants one, its only like £3






Then I got my little paint pots through so can start referbing the grill badge.

I painted the back of it metallic silver, then I will paint over it with top coat to try to protect it and do the front matt black






Looks much better from the front










31/8/2017

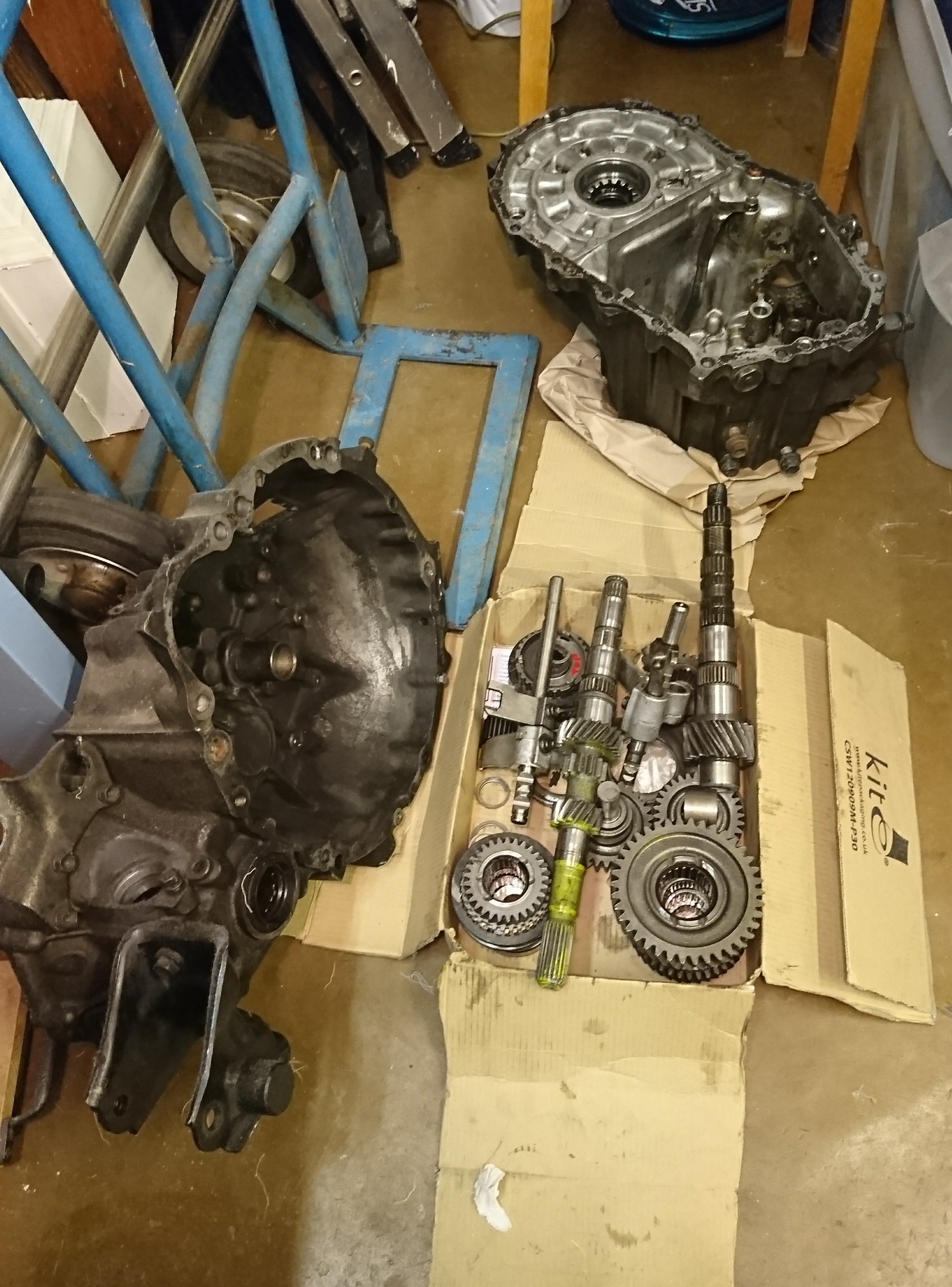

Had a crack at taking the gearbox apart today, started removing all the bolts and split the cases then realised I didn't have a 12mm spanner at hand to get them to split completely :unknw: Now following a lot of googling I am almost sure it's not fitted with the LSD that I was hoping for, and had a look for a TRD helical LSD but came up with nothing, so once I get it open I'll have a look to confirm what I got, and then I guess I might be buying a Quaife ATB LSD

Still would have preferred a TRD helical though :rolleyes:


2 of the bolts inside the bell housing decided to round themselves, so I had to drill the heads off, I was actually excited to do that because I got to try out my brand new milwaukee M12 drill and cobalt drill bits I had bought recently :D which made really light work of it!!





Also while trying to restore/polish the other headlight cover, the crack made itself worse (fucking brilliant..) so I am now looking for a new set or even just the drivers side one

And as for the grill badge, believe it or not I'm still actually waiting for the paint to dry fully lol, bought a Levin 7/8" brake master cylinder to go with the Levin calipers already fitted to give for even better braking


and waiting on some TRD engine mounts to come through

Edited by Trevstar
Link to post
Share on other sites
  • 2 weeks later...

Hey buddy, nice to see she's back on here. Miss the car a lot- one of the cleanest SR's in the country by far. You're taking her in a different direction to me but she is all yours and you know I always tease you about keeping her looking like an SR Like the fact you're staying NA and think I'd have done the same. Keep up the good work mate

Link to post
Share on other sites

Hey buddy, nice to see she's back on here. Miss the car a lot- one of the cleanest SR's in the country by far. You're taking her in a different direction to me but she is all yours and you know I always tease you about keeping her looking like an SR Like the fact you're staying NA and think I'd have done the same. Keep up the good work mate

Also love the headlight covers! Saw them when I had the car but was too scared to use them- they're meant to protect the headlights but you just end up never wanting to use them ha ha.

Told ya id look after it!

And I know what you mean, one already had a crack so why not haha, cheers mate!

Link to post
Share on other sites

Great project mate, are you gonna run an aftermarket ecu on it?

Thanks mate, I think that's the plan, no point modifying the engine while it runs on a standard map not set up to suit. I have the ECU from a EP82 Gi (100hp) but I can't get it to run properly, so instead it's either a Megasquirt V3 standalone Ecu (but it's not compatible with the UK spec immobiliser) or a Greddy Emanage piggyback ECU

Link to post
Share on other sites
  • 3 weeks later...

14/9/17

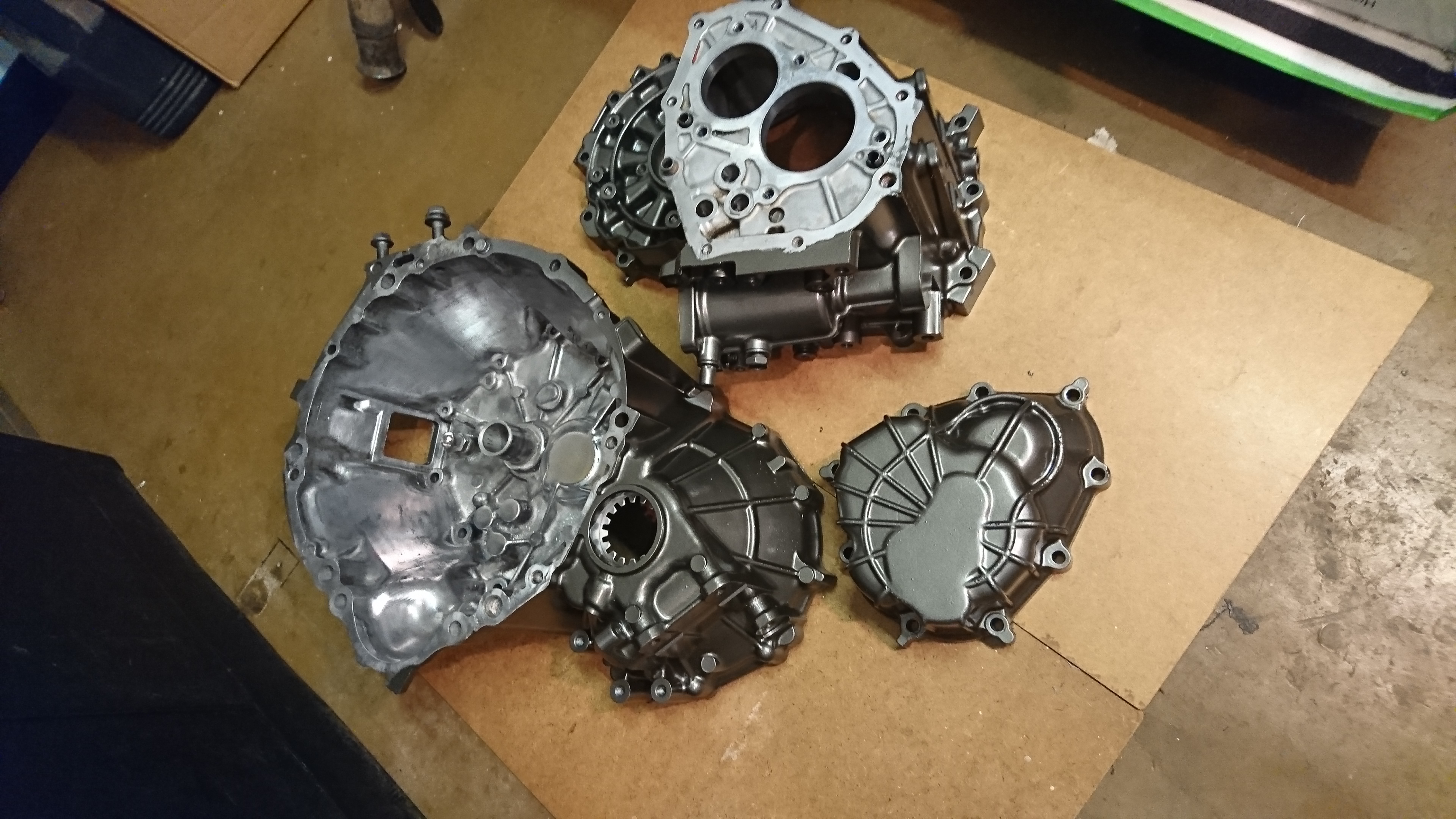

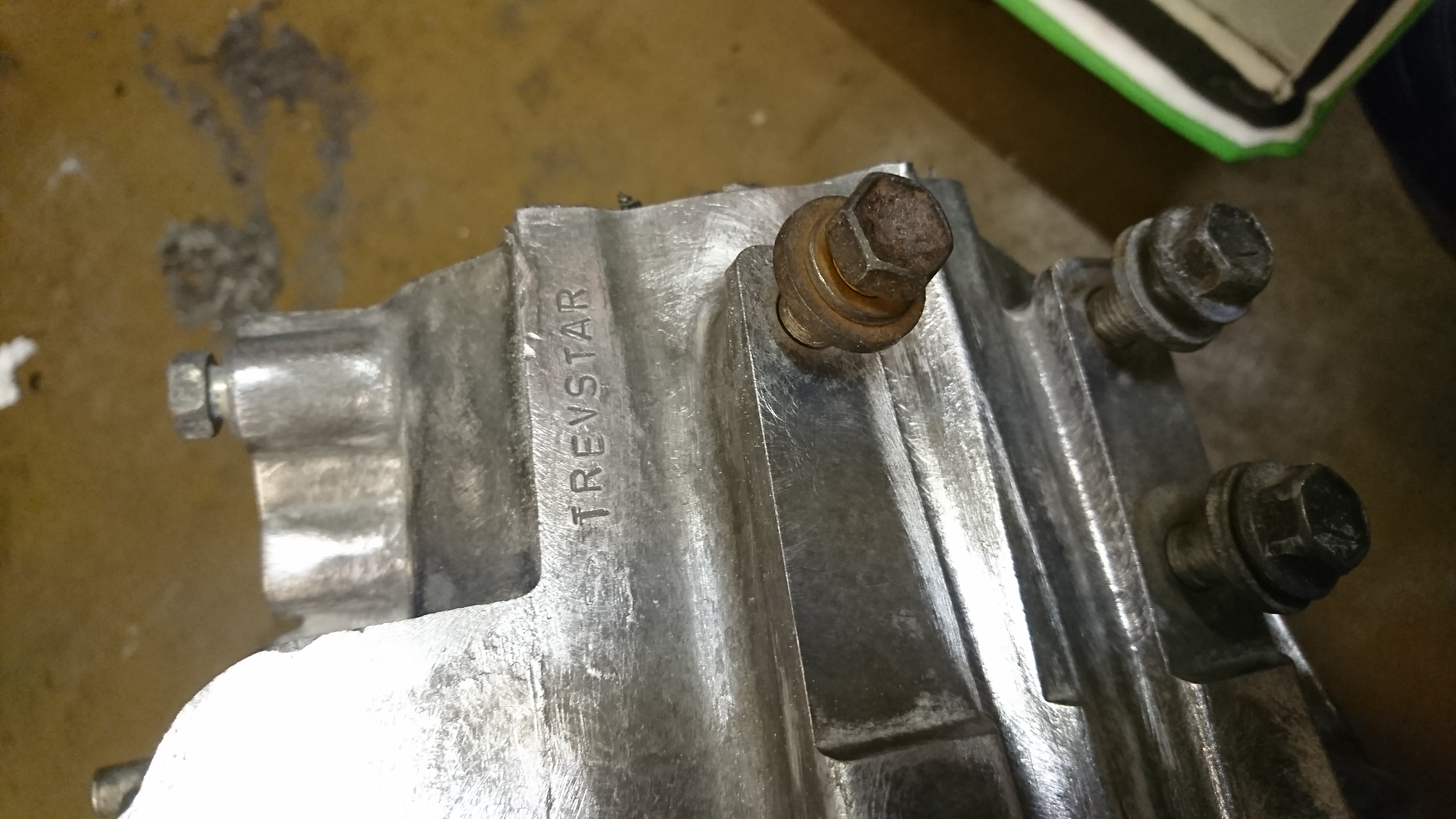

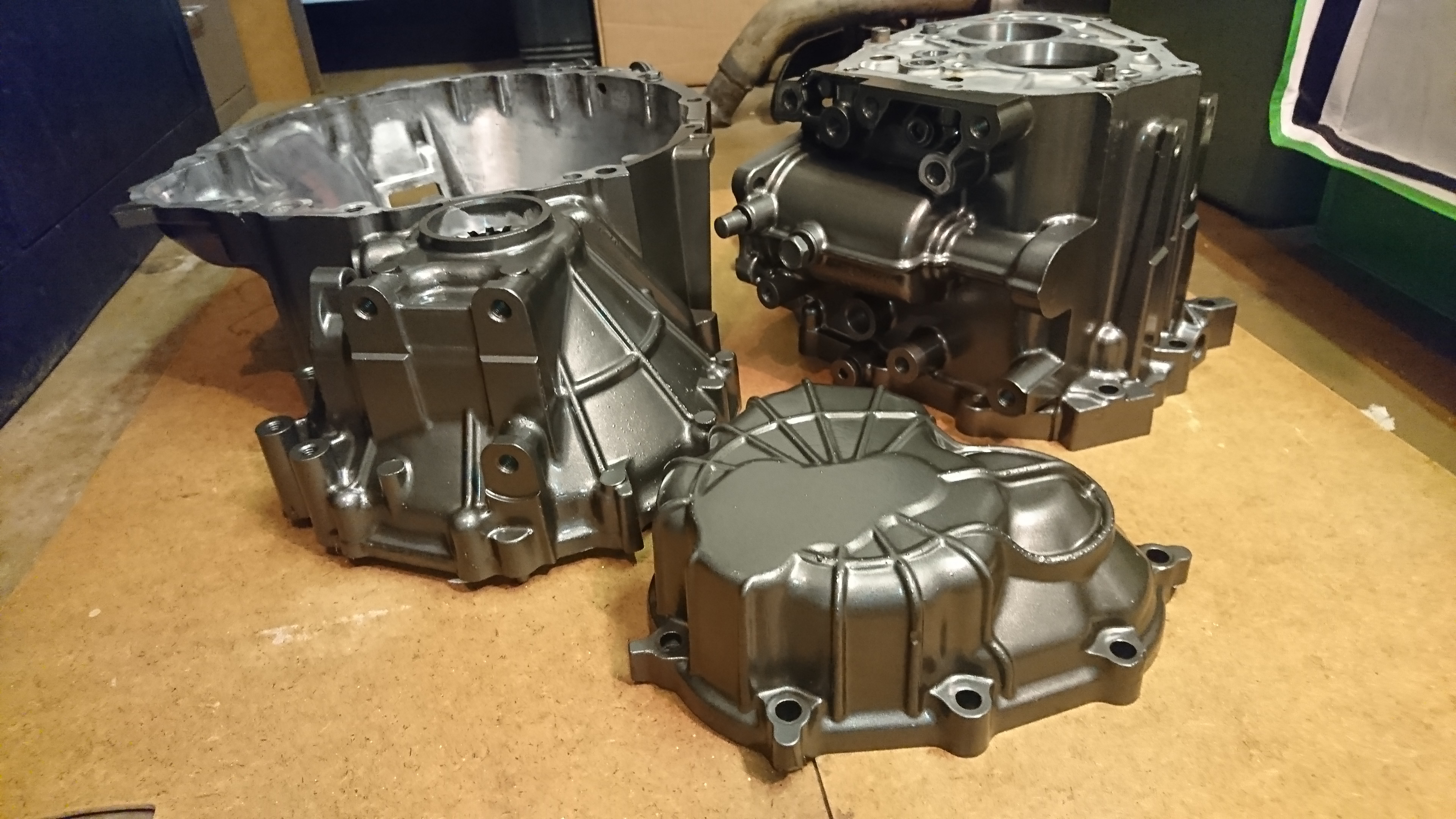

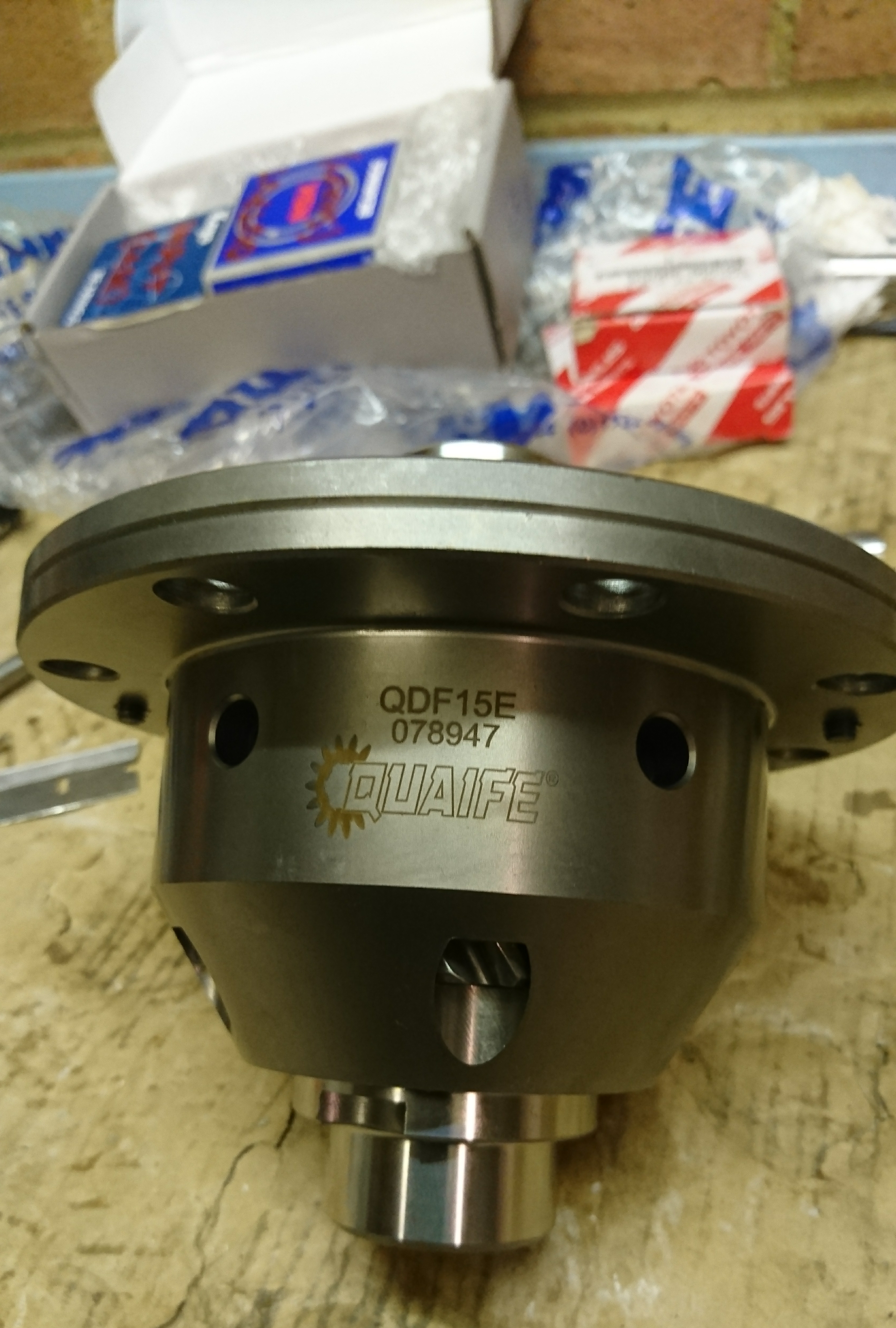

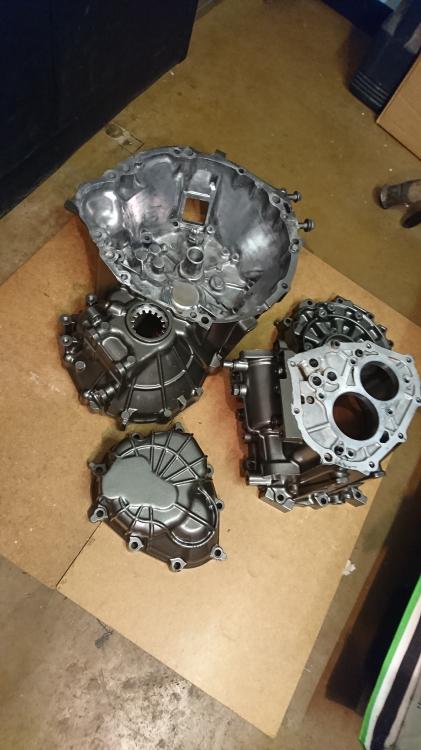

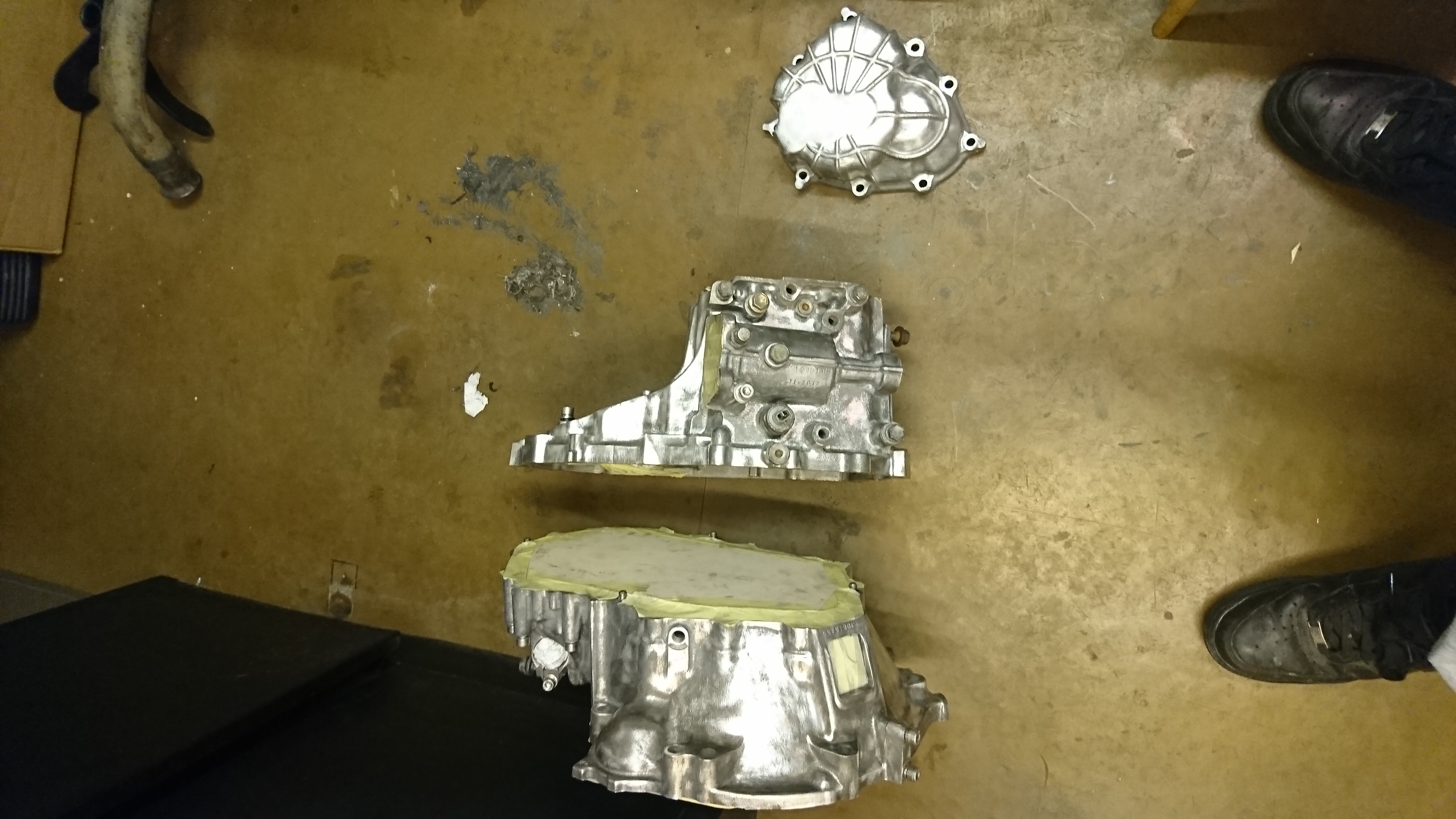

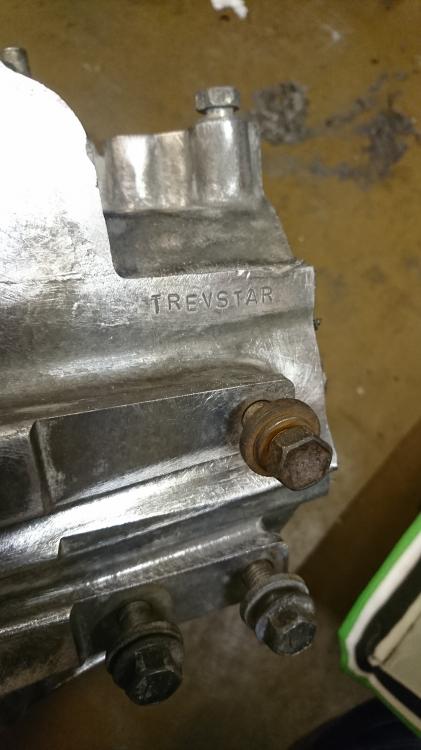

Nothing really new has happened, just been disassembling my gearbox, which I have written a tutorial about here: [EDIT: Tutorial somehow got lost unfortunately through a server swap but im looking at doing another in future] And it definitely looks like I will be getting a Quaife ATB! The diff I have is a TRD clutch type LSD, which is not what I want unfortunately



1f5b8e7fcfd4efd6be7d18253b4abff7.jpg237a60b0d57b32926207f1e40ec3de07.jpgf1ac0502ed9071a941d5d2ef17717d71.jpg



Other than that the grill badge is done and ready to fit, but not going to do that just yet






And the TRD engine mounts I bought turned out not to be TRD mounts sadly so I'm now toying with the idea of poly mounts but question is, do I really need them? Perhaps not



And I have managed to find a replacement set of headlight covers so waiting on them, the driver side also has a small crack in it like the last one but I'm fine with that, will just remember to be more careful when restoring them if needed



And I'm no longer getting a unit to rent, so massive thank you to my fantastic mother who is allowing me to build a temporary garage/shed/workshop on the side of the house, so that will do for now



And I received a nice little Optional extra from rock-kick-ass today



1bd509cf655495245954d068bdac7550.jpg480a0b90c3402cbace60d584762fc79c.jpgdf4f9870758ff94b8139e8720a5c8d4e.jpg



Now I have it I'm almost tempted not to fit it!



26/9/17

Shortly after I received the rescueman, I obtained some Optional 4 piece aluminium pedals, haven't fitted the footrest one because I don't have a footrest yet, but finally got round to fitting 3 of them so far and also the rescueman








29/9/17

After a bit of a hiccup, I FINALLY got the new headlight covers!!






Very happy! When I bought these I was aware one had a crack in it and I thought it was the driver side, the side I already fucked, but as it turns out it was the other side, so I now have a full set in perfect condition! Well, they will be once I polish up the new one and stick the little rubber pads back on

Edited by Trevstar
Link to post
Share on other sites
  • 3 weeks later...

1/10/17

Started rubbing down the new headlight cover with 400 to 7000 grit sandpaper then

polish to remove all the micro scratches and bring them up like brand new!

400 grit:




7000 grit:




Now all it needs is polishing with the polishing wheels and it will be like new



Been told that one of my bones in my leg still hasn't healed, so apparently I require a bone graft (fantastic) so I want to get as much done as I can before I have that operation



2/10/17

Finished up the headlight cover




Crystal clear! Stuck the gel pads back on and it's literally like new



Got a package today

Inside was a Optional rubber boot mat that fits nicely and a TRD radiator cap






Lol I have actually bought 2 boot mats, a hard plastic one and the rubber one, haven't received the plastic one yet but now I got the rubber one I know the plastic one ain't gonna fit, as the rubber one is flexible to fit under my sub and over the spare alloy (which sits higher than usual)

So I guess once I get the plastic one it will be sold on, same with the TRD LSD



Got a estimate on all the gearbox parts and errm... Yeahh haha big bucks

but im sure I can get them cheaper elsewhere



6/10/17

Look what I got! :D

DSC_0322.thumb.jpg.b90b9a2324e6fa747b96e



Gearbox is now fully stripped and will start cleaning up the cases and a few other bits while I wait for the new gearbox parts



DSC_0320.thumb.jpg.b59379929b891ec8c5ee2



8/10/17

Wire wheeled the entire box, prepping for painting

DSC_0326.thumb.JPG.cb8a15365a20ef2aa4f5d



Stamped the rebuild date into it for future reference (yes I know it's a month ahead but I doubt it will actually be rebuilt til then anyway)



DSC_0324.thumb.JPG.2fe420df0510e33186fcf



And I placed my mark on it of course, like the cylinder head! Wasn't going to let my handy work go unnoticed :D



DSC_0325.thumb.JPG.7b05af659a1f33d70e836



9/10/17

Gearbox etch primed, and painted with VHT SP997



DSC_0327.thumb.JPG.fa5a75af089c1d4891dce

DSC_0329.thumb.JPG.9aa064f524d5ce8647611



...To be continued...





Edited by Trevstar
Link to post
Share on other sites

Sorry to hear about your pal, hope all works out on that.



However in respects to your SR...love the work youre doing, great attention to detail. Had a black 1 myself until i crashed it, had a silver 1 for a breaker on the scrappage scheme and now a white 1 i really need to add ALOT of pix on.



Kepp up the good work, youve got 1 really awesome wee car!


Link to post
Share on other sites

Sorry to hear about your pal, hope all works out on that.

However in respects to your SR...love the work youre doing, great attention to detail. Had a black 1 myself until i crashed it, had a silver 1 for a breaker on the scrappage scheme and now a white 1 i really need to add ALOT of pix on.

Kepp up the good work, youve got 1 really awesome wee car!

Cheers Gainzy!

And thanks Paul, appreciate that, yesterday would have actually been his birthday so had been a bit of a shitty day for myself, cant imagine how his family is feeling, and it's only 2 weeks away until it would have been a year ago since he passed

For me working on all these car bits helps me keep my mind off it, but I'm only using money I had saved as I'm not earning anymore and I keep spending and spending but have to remind myself that it won't last forever unfortunately

EDIT: and yeah Paul you gotta reupload your pics bro!

Edited by Trevstar
Link to post
Share on other sites
  • 2 weeks later...

:shok: that gearbox casing! Those OEM options! those headlight covers!

Love the NA direction, the subtle mods on the interior and the standard you achieve.

A mate of mine is running a Megasquirt kit he built on his 8v Carlton turbo estate. Lots to tinker with, lots (for me) to learn.

Interested to see this progress, very inspiring for a noob like me.



Link to post
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.


×
×
  • Create New...
